Hertel 1000047 Svjb Indexable Turning Toolholder 3/4 in

Product Description

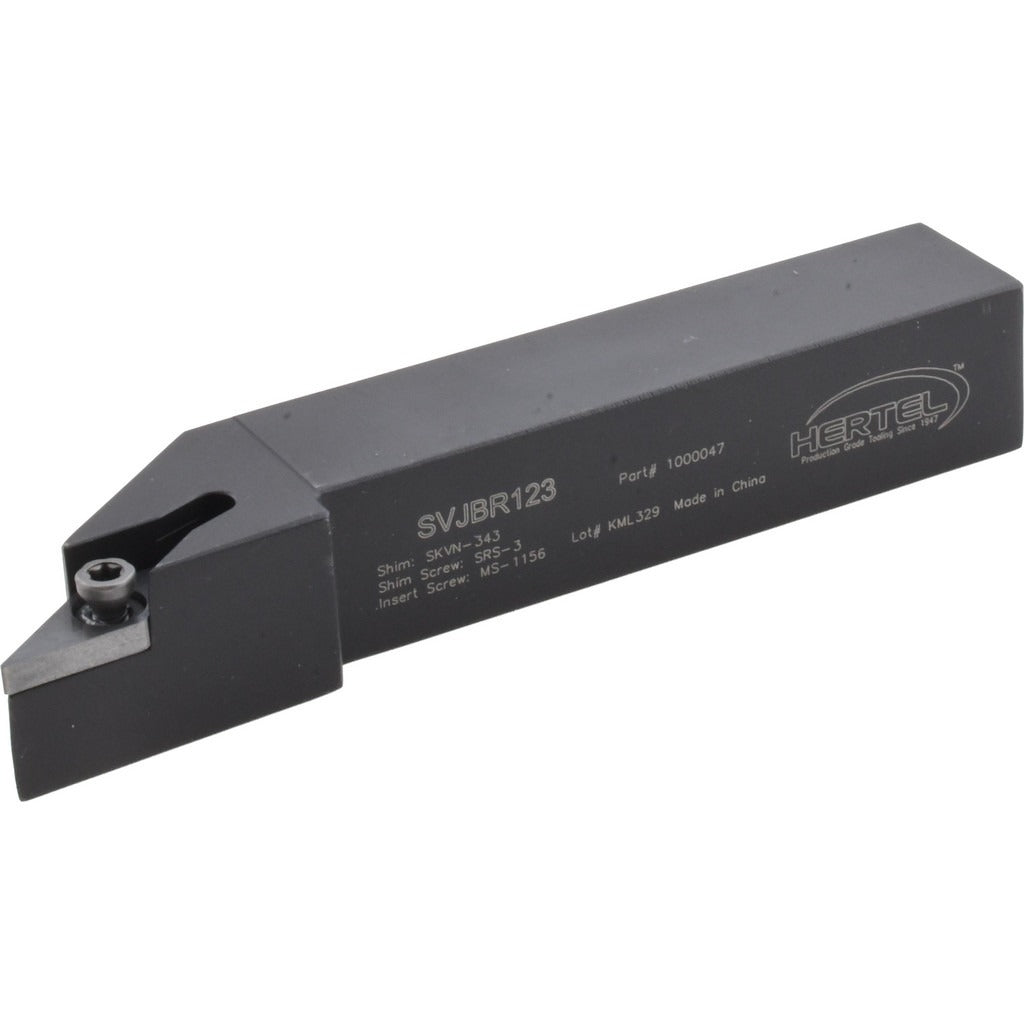

The HERTEL 1000047 is a right-hand SVJB-style indexable turning toolholder designed for use with VB..33. series inserts. Built on a 3/4 inch by 3/4 inch steel shank and measuring 4.5 inches in overall length, this toolholder uses a screw-type insert holding method to secure inserts firmly during turning operations. The neutral rake geometry suits a range of general-purpose turning applications. This holder is installed by machinists and tooling technicians on CNC and manual lathes in production and job-shop environments. At 0.6 pounds, it is a compact, solid-steel unit intended for precision external turning work.

This toolholder is suited for external turning operations on CNC lathes and engine lathes in both production and prototype environments. The 3-degree lead angle and neutral rake configuration make it appropriate for straight turning, light facing, and general-purpose stock removal. It accepts VB..33. series indexable inserts with a 3/8 inch inscribed circle, giving tooling technicians flexibility when selecting insert grade and geometry for ferrous and non-ferrous workpiece materials. It is not a multi-use tool and is intended for dedicated right-hand turning setups.

Key Features

• SVJB toolholder style with right-hand orientation and neutral rake geometry
• Screw-type insert clamping method for secure, repeatable insert indexing
• 3/4 inch x 3/4 inch shank cross-section fits standard lathe tool posts and turrets
• Accepts VB..33. series indexable inserts with 3/8 inch inscribed circle
• Overall length of 4.5 inches with a head length of 1.38 inches
• Toolholder body constructed from steel for rigidity and durability

Compatibility

Compatible with VB..33. series indexable inserts, specifically complete insert compatibility noted as VB.. 332. Designed as an OEM-style screw-type turning toolholder for right-hand external turning operations on lathes accepting 3/4 inch shank toolholders.

Installation Notes

Installed by machinists and tooling technicians on CNC or manual lathes. Power down and de-energize the machine before changing or indexing inserts. Secure the toolholder firmly in the tool post or turret station before operation. Follow the machine manufacturer torque and clamping specifications for the tool post; do not overtighten the insert screw beyond the insert manufacturer recommendation.
