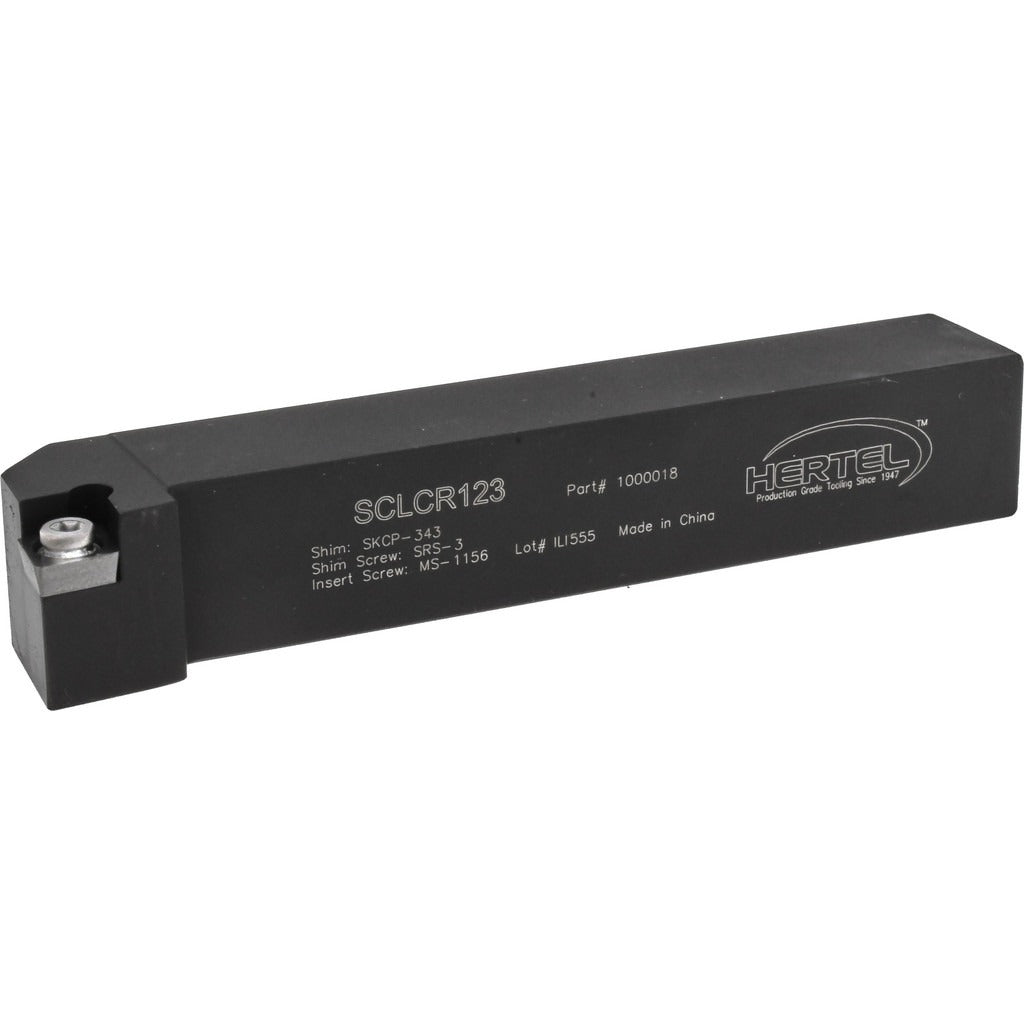

Hertel 1000018 Rh Sclc Indexable Turning Toolholder

Product Description

The HERTEL 1000018 is a right-hand SCLC-style indexable turning toolholder designed for external turning operations on CNC lathes and manual turning centers. Built from steel with a neutral rake geometry, it accepts CC..32.5. series inserts secured by a screw-clamp holding method. The shank measures 0.75 inches wide by 0.75 inches tall with an overall length of 4.5 inches. The insert inscribed circle is 0.375 inches. This toolholder is intended for use by machinists and CNC operators running production or prototype turning work where repeatable insert indexing and rigid screw retention are required.

This toolholder fits into standard square-shank tool posts and turret stations that accept a 3/4 inch by 3/4 inch shank profile. It is suited for finishing and general-purpose turning on ferrous and non-ferrous materials. The neutral rake orientation makes it adaptable across a range of workpiece materials. The head length is 0.62 inches and the back-of-bar to cutting edge distance is 1.0 inch, which aids in setup alignment on the turret. Coolant-through capability is not included on this toolholder.

Key Features

• Right-hand SCLC toolholder style with neutral rake geometry
• Screw-type insert clamping for positive retention and repeatable positioning
• Accepts CC..32.5. series inserts with a 0.375 inch inscribed circle
• Steel construction for rigidity in production turning environments
• 3/4 inch by 3/4 inch shank fits standard square-shank tool posts and turret stations
• Overall length of 4.5 inches with a 0.62 inch head length

Compatibility

Designed for use with CC..32.5. series inserts, with complete insert compatibility noted as CC.. 3252. Fits standard tool posts and lathe turrets accepting a 3/4 inch by 3/4 inch square shank. Manufacturers catalog number SCLCR L123.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Power down and lock out the lathe or turning center before mounting or removing the toolholder from the turret. Secure the shank fully in the tool post or turret station to the depth specified by the machine manufacturer before torquing hold-down fasteners. Verify insert seating and screw engagement before resuming cutting operations.
