Heli-coil A4184-5CN100 Screw-locking Insert M5 X 0.80

Product Description

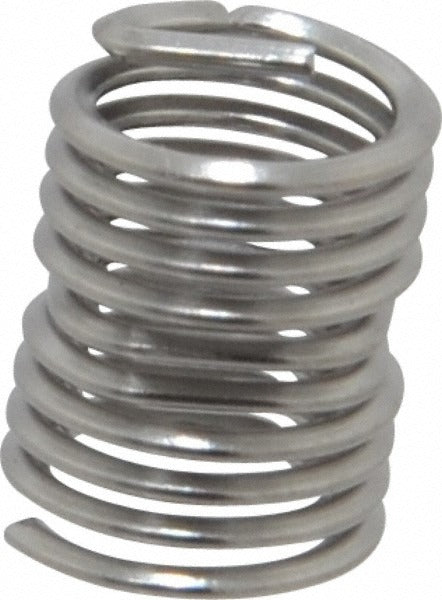

The HELI-COIL A4184-5CN100 is a tanged, screw-locking helical wire insert designed to create a strong, vibration-resistant threaded hole in parent materials that require reliable thread retention. Manufactured from Grade 304 stainless steel with a bright, uncoated finish, this insert accepts an M5 x 0.80 metric coarse thread and provides a 2D length-to-diameter ratio with an overall insert length of 10.00 mm. The locking feature is produced by a deformed coil that applies radial pressure against the mating fastener, resisting back-out under dynamic loads. Electricians, millwrights, maintenance technicians, and mechanical contractors install these inserts to repair stripped threads or to reinforce threads in softer base materials.

This insert is suited for light industrial, electrical, and mechanical assembly applications where corrosion resistance and positive thread locking are required. The M5 x 0.80 metric coarse thread standard is common in control panels, equipment enclosures, pump housings, and general machinery. At a 2D insert length, it provides full thread engagement depth for standard fastener loads. The tanged design is compatible with standard HELI-COIL installation tooling, and the tang is removed after installation using a standard tang break-off tool.

Key Features

• Screw-locking design with deformed coil section resists fastener back-out under vibration
• Grade 304 stainless steel construction for corrosion resistance in wet or harsh environments
• M5 x 0.80 metric coarse thread with 10.00 mm overall insert length (2D ratio)
• Outside diameter range of 6.25 mm to 6.80 mm for proper fit in standard HELI-COIL tapped holes
• Maximum locking torque of 1.60 N/m with minimum breakaway torque of 0.30 N/m
• Tanged installation style compatible with standard helical insert driver tooling

Compatibility

Designed as an OEM-style screw-locking insert for use in any parent material tapped to the standard HELI-COIL M5 x 0.80 metric coarse installation specification.

Installation Notes

Installation requires a properly tapped hole using the correct HELI-COIL tap for M5 x 0.80 metric coarse thread, along with a compatible installation tool and tang break-off tool. Power down or de-energize any equipment before performing thread repair or insert installation. Follow the fastener manufacturer torque specifications for the parent material type - do not exceed rated locking torque during installation. Tang removal is required after the insert is fully seated to the specified depth.
