HEATINGVARIOUSMFG-GENERIC A-2-WAT Control Valve for HVAC Applications

Product Description

The HEATINGVARIOUSMFG-GENERIC A-2-WAT is a control valve intended for HVAC systems. It regulates the flow of hot or chilled water, making it essential for temperature control in various applications. The valve is built with a sturdy brass or bronze body, ensuring long-lasting use. It can handle solutions with ethylene glycol or glycol and functions efficiently under a range of conditions. The valve features a nickel-plated stem and a BUNA N paddle, which work together to provide effective operation. If the actuator is included, it features a stainless steel base plate and an aluminum cover. This control valve is available in a two-way configuration, suitable for various HVAC applications.

• Suitable for hot or chilled water and glycol solutions.
• Durable brass or bronze body.
• Two-way design for efficient flow control.

Product Highlights

Effective regulation of hot or chilled water flows in HVAC systems.

Product Information

Standard Information

• Brand: HEATINGVARIOUSMFG-GENERIC
• MPN: A-2-WAT

Technical Specifications

• Connection Type: Sweat
• Pipe Size: 3/4 inches
• Fluid Temperature: 34 F to 203 F
• Maximum Differential Pressure Ratings: 60 psi
• Capacity (Cv): 4.6 Cv
• Valve Action: Stem up to close A port
• Controlled Fluid: Chilled or hot water with up to 60% Glycol
• Fail-Safe: Spring Return
• Power Supply: 24 V
• Type: Actuator Only
• Supply Va: 7.5 VA
• Control Signal: Two Position
• Flow Pattern: 2-Way
• Valve Trim: Brass

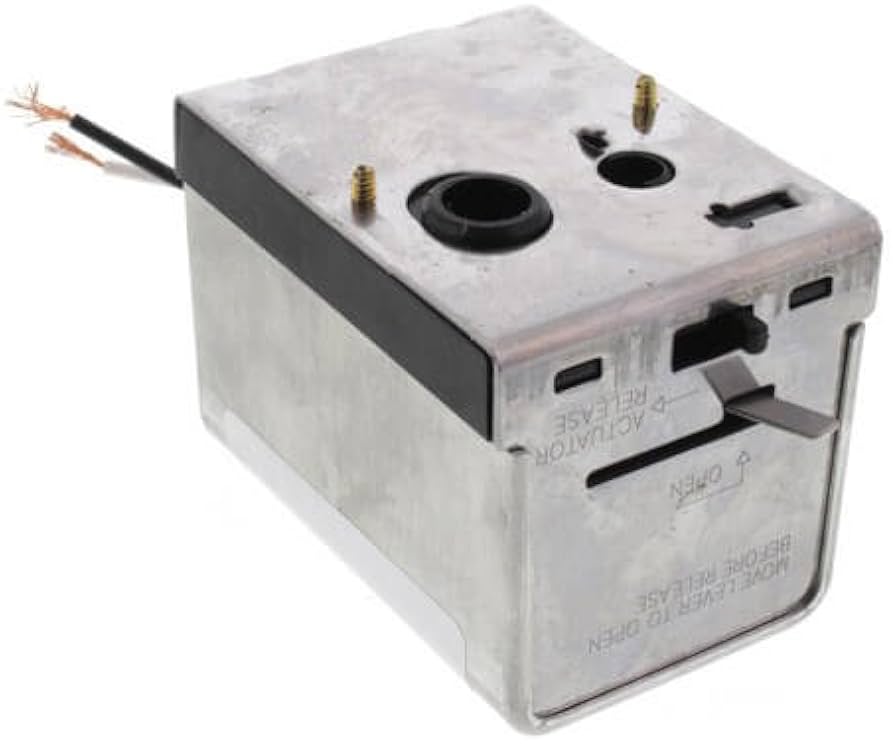

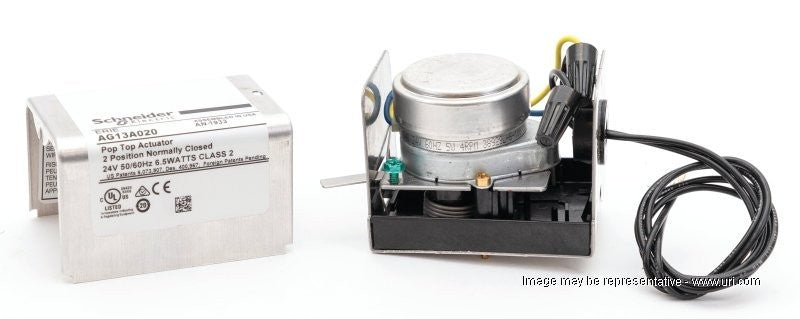

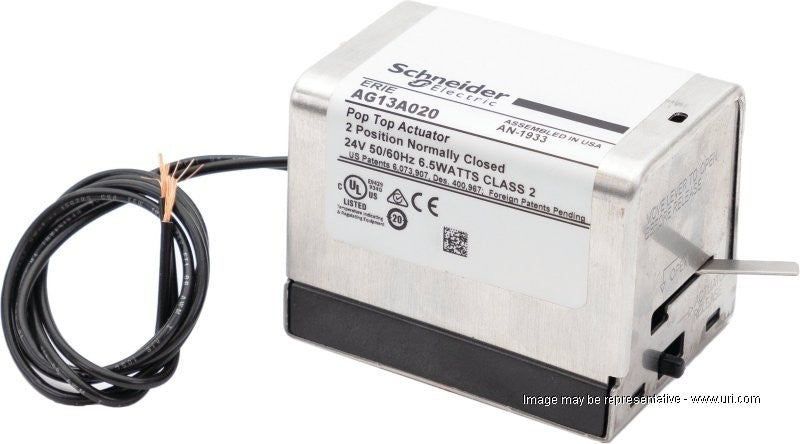

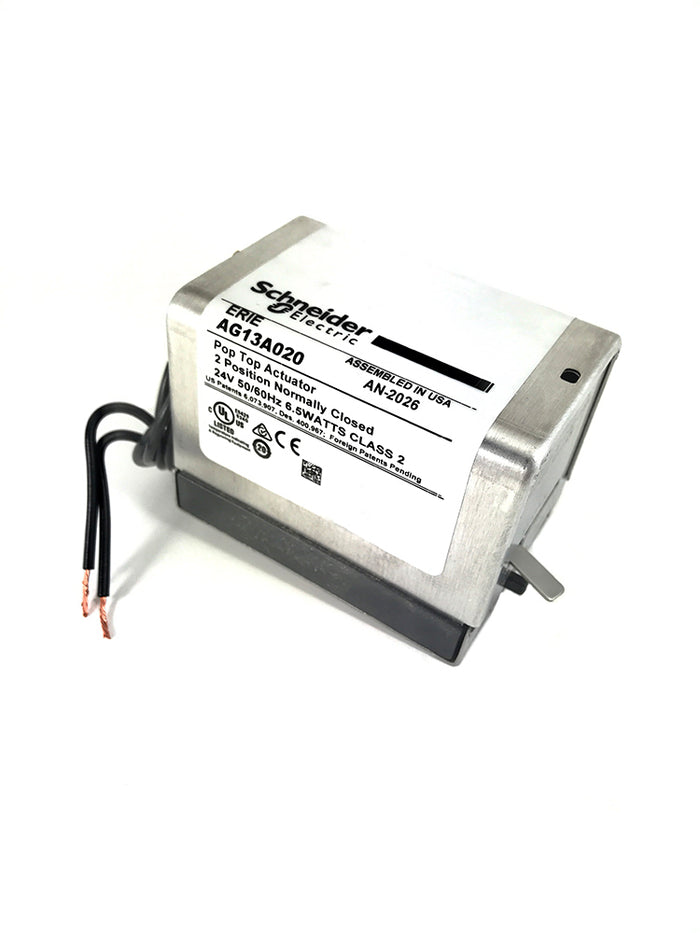

• Actuator Type: Electric
• Supply Voltage (Nominal): 24 VAC
• Cv Range: 1.0 to 8.0
• Connections: FNPT, Sweat, or inverted flare (3/4 only)
• Flow Characteristic: Quick Opening
• Leakage Rating: ANSI Class IV (0.01% of rated capacity)
• Maximum Pressure Rating: 300 psig (2067 kPa)
• Materials Of Construction: Brass valve body and seat, nickel-plated stem, BUNA N paddle; stainless steel base plate and aluminum cover on actuator.
• Media Compatibility: Hot or chilled water; 50% or less ethylene glycol; 15 psig steam.
• Media Temperature Range: 32 degrees to 200 degrees Fahrenheit (0 degrees to 93 degrees Celsius) with AG actuator; up to 250 degrees Fahrenheit (121 degrees Celsius) with AH actuator.
