HART 16216 Draft Hood Connector 5 Inch Replacement MPN

Product Description

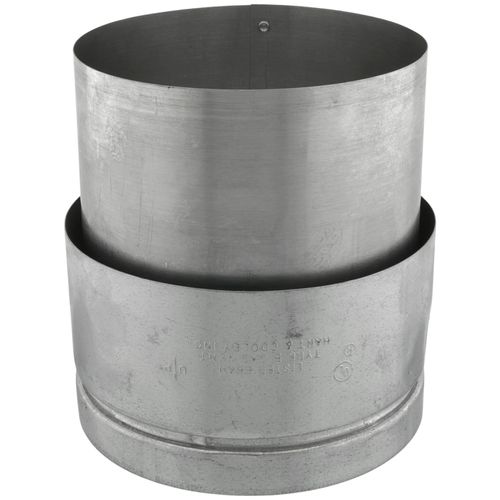

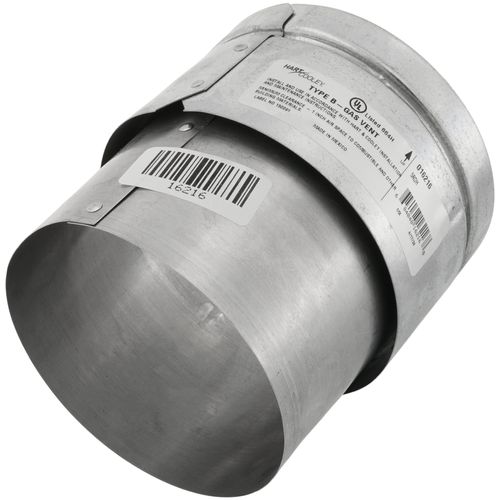

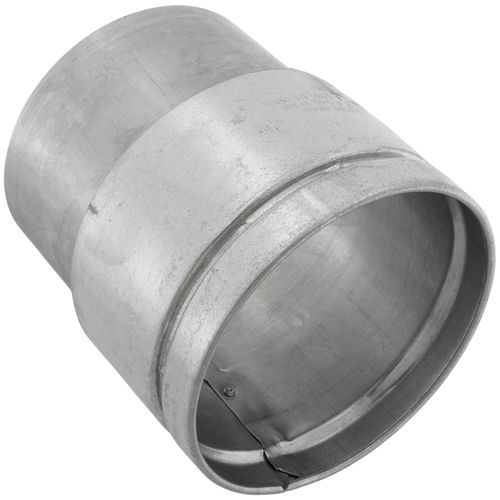

The HART 16216 is a five-inch draft hood connector suitable for venting applications. This product is part of a double-wall, air-insulated B-Vent system. It includes locking joints that enhance stability during installation. The outer pipe is made from galvanized steel while the inner pipe is aluminum. This connector is designed for negative pressure applications, handling flue gas temperatures up to four hundred degrees Fahrenheit above ambient. The installation process involves two steps, featuring a secure locking mechanism and includes all necessary fittings and caps.

• Constructed as a double-wall, air-insulated B-Vent system
• Galvanized outer pipe with aluminum inner pipe
• Complies with UL 441 standards

Product Highlights

This connector is essential for proper venting of gas appliances and ensures safe operation by maintaining system integrity.

Product Information

Standard Information

• Brand: HART
• MPN: 16216

Technical Specifications

• Size: 5 Inch
• Product Type: Connector
• Material: Aluminum (Inner Wall), G90 Galvanized Steel (Outer Wall)
• Application: HVAC
• Type: Double Wall, Round, Draft Hood, Type B, Venting
• Applicable Standard: UL 441
• Material Thickness: 0.016 Inch (Inner Wall), 0.018 Inch (Outer Wall)
• Series/Model: RDH
