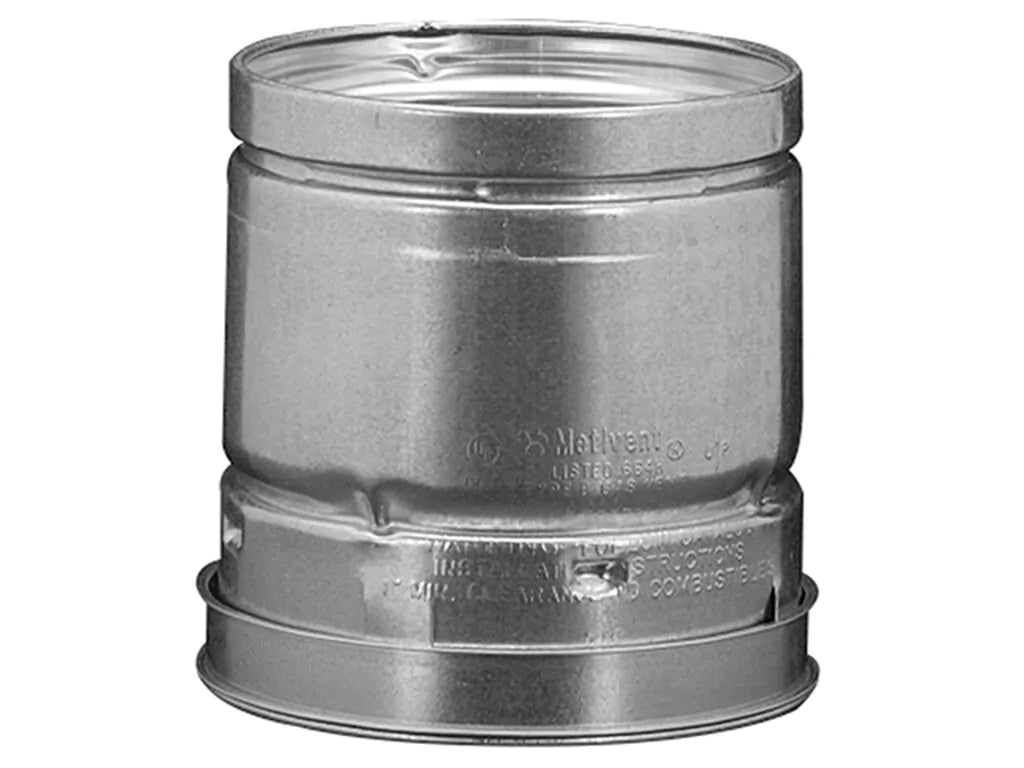

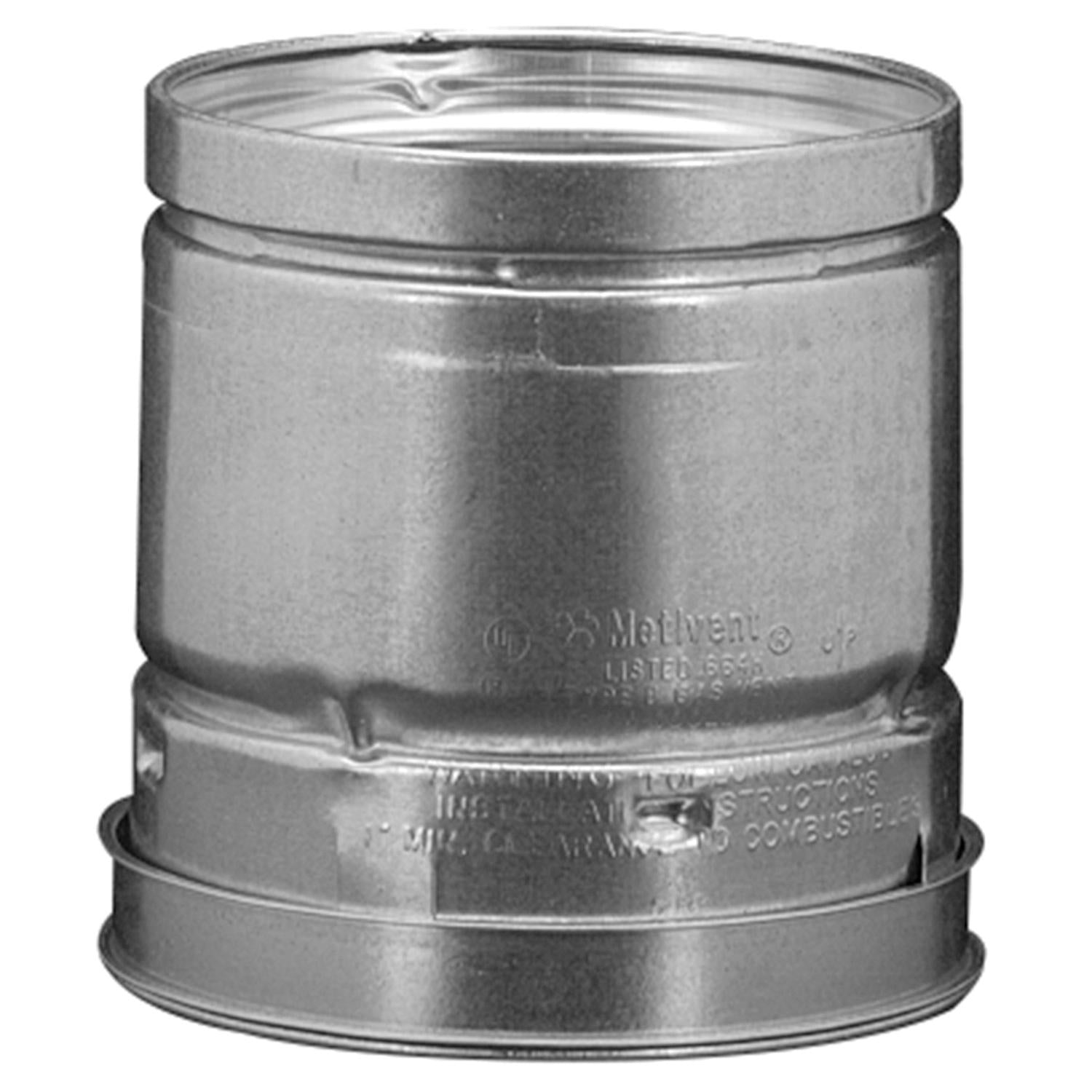

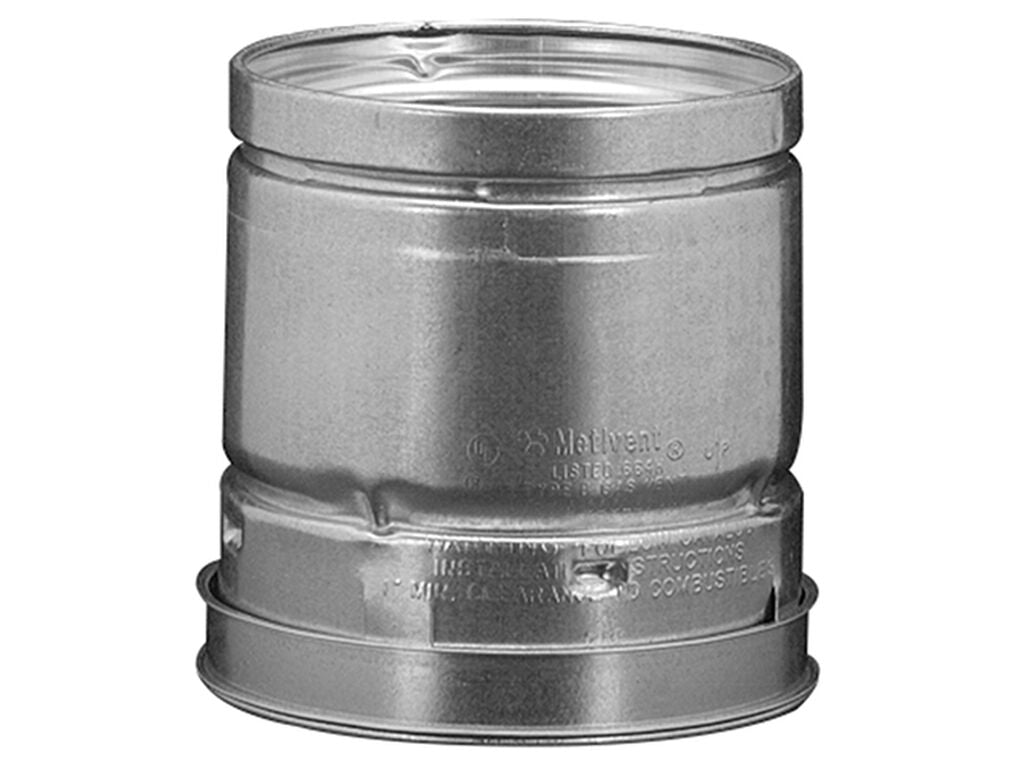

HART 16105 Galvanized Vent Pipe 4 Inch by 12 Inch Replacement MPN

Product Description

The HART 16105 is a vent pipe intended for Type B venting applications. This product comprises galvanized steel on the outside and aluminum on the inside, making it suitable for HVAC systems. The vent pipe has a nominal diameter of four inches and a length of twelve inches. When using couplers, they overlap, so the assembled length may be slightly shorter.

• Constructed from aluminum and galvanized steel.
• Designed for Type B venting applications.
• Suitable for HVAC systems.

Product Highlights

This vent pipe offers a reliable solution for exhausting gases, designed to ensure a secure installation and longevity.

Product Information

Standard Information

• Brand: Hart & Cooley
• MPN: 16105

Technical Specifications

• Material: Aluminum (Inner Wall), G90 Galvanized Steel (Outer Wall)
• Length: 12 inches
• Nominal Diameter: 4 inches
• Type: Double Wall, Round
• Temperature Rating: 400 degrees F
• End Type: Lock-Ring
• Wall Thickness: 0.012 x 0.018 inches
• Application: Type B venting
• Finish: Galvanized
