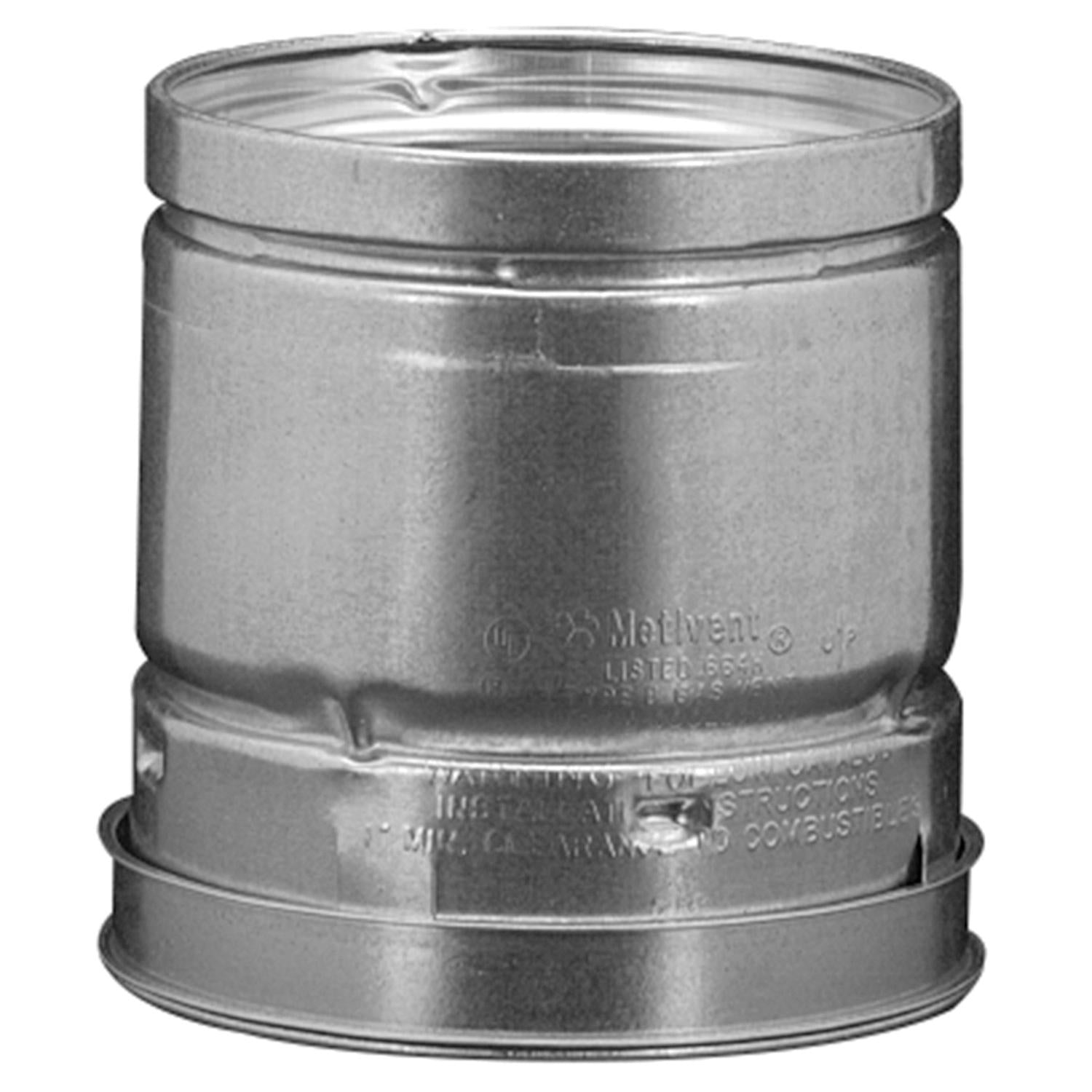

HART 16101 B-Vent Pipe - 4 Inch x 48 Inch

Product Description

The HART 16101 B-Vent Pipe is a reliable choice for venting systems used in gas heating appliances. It is constructed with a double-wall design that features an aluminum inner wall and a galvanized steel outer wall. This pipe is capable of handling flue gas temperatures up to four hundred degrees Fahrenheit above ambient temperature. It includes locking joints that create secure connections, making it suitable for HVAC applications.

• Made of aluminum and galvanized steel
• Designed for negative pressure applications
• UL listed for installation in two by six walls

Product Highlights

The HART 16101 B-Vent Pipe provides durability and efficiency in gas venting setups, ensuring optimal performance.

Product Information

Standard Information

• Brand: HART
• Type: B-Vent Pipe

Technical Specifications

• MPN: 16101
• Material: Aluminum (Inner Wall), G90 Galvanized Steel (Outer Wall)
• Nominal Size: 4 inches
• Length: 48 inches
• Outside Diameter: 4-1/2 inches
• Wall Thickness: 0.012 inches (Inner Wall), 0.018 inches (Outer Wall)
• Temperature Rating: 400 degrees Fahrenheit
• Application: HVAC
