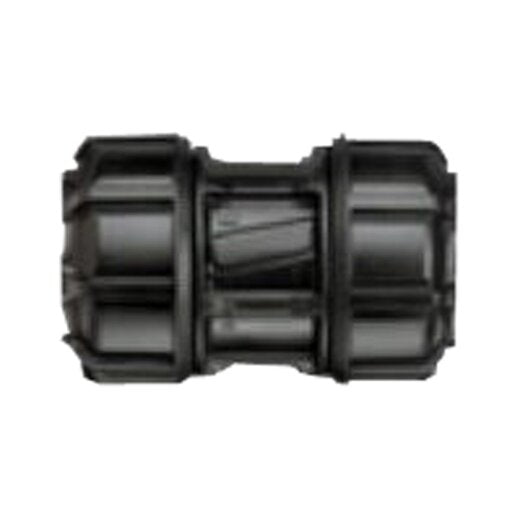

Harco 75-30944 Philmac Compression 3G Coupling Without Stop 1 in.

Product Description

The HARCO 75-30944 Philmac Compression 3G Coupling is engineered for durability. These pipe fittings encompass a complete range of sizes and pressure ratings, and conforms to all major industry standards. Designed for the waterworks and irrigation markets, this coupling is made in the USA.

• Fast and easy installation
• Easy to Install
• Durable Construction

Product Highlights

The Harco Philmac coupling offers fast installation and durable construction for reliable pipe connections.

Product Information

Standard Information

• Brand: HARCO
• Manufacturer Part Number: 75-30944
• Country of Origin: USA

Technical Specifications

• Item: Coupling
• Type: Pipe
• Series: Compression 3G
• Material: HDPE
• Connection Size: 1 in. x 1 in.
• Connection Type: Compression x Compression
• Includes: W/o Stop
• Regulated: No
• Brand Name: Harco
• Size: 1in
• Dimensional & Functional: AWWA C800
• Joints: ASTM D3139
• Threads: ANSI/ASME B1.20.1, ASTM F1498
• Pressure Rating: 230 psi
• Compatible Pipe: ASTM D3035 (IPS), AWWA C901 (IPS-OD), ASTM F714 (IPS)
• Compatible SDR's: 7, 9, 11, 13.5, 15.5, 17
• Suitability for Potable Water: NSF 61 Listed
• Independent listing: ICC Evalution Service (ICC-ES PMG Product Certificate: PMG-1253) for compliance with: NSF61, CSA B137.1, UPC, IPC, IRC, NPC
