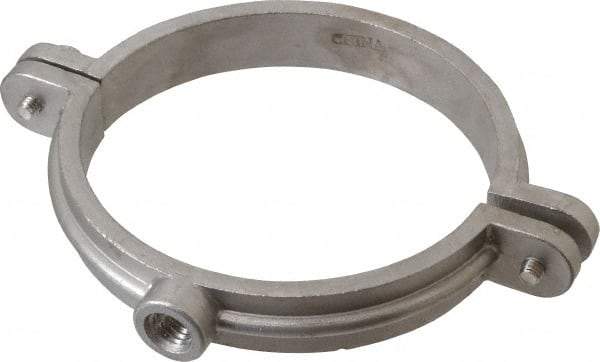

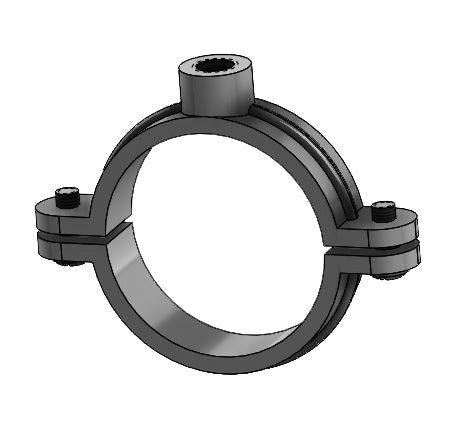

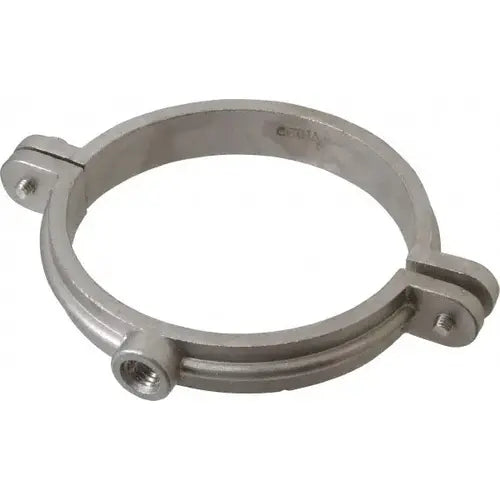

HANGERS 41SSI0400 4-Inch Split Ring Hanger

Product Description

The HANGERS 41SSI0400 is a split ring hanger made for supporting non-insulated stationary pipes. This product is ideal for both horizontal and vertical installations. Manufactured from 304 stainless steel, it is suitable for use in environments where corrosion is a concern. It supports a nominal pipe size of four inches and accepts a half-inch rod. The hanger meets the Manufacturers' Standardization Society standards MSS SP-58 and MSS SP-69 (Type# 12).

• Made for suspending stationary pipe lines
• Constructed from 304 stainless steel for durability
• Adheres to industry standards MSS SP-58 and SP-69

Product Highlights

This split ring hanger is designed for reliable application in challenging environments.

Product Information

Standard Information

• Material: Stainless Steel
• Material Grade: 304

Technical Specifications

• Nominal Pipe Size: 4 in
• Rod Size: 1/2 in
• Product Type: Split Ring Hanger
• Pipe Outside Diameter (Decimal Inch): 4.5000
• Pipe Outside Diameter (Fractional Inch): 4-1/2
• Load Capacity: 180.00 lb
