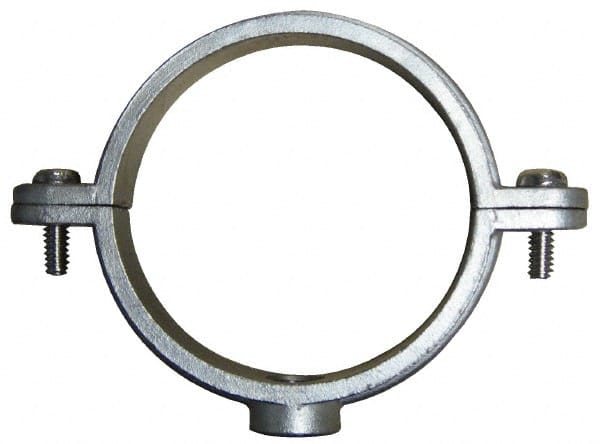

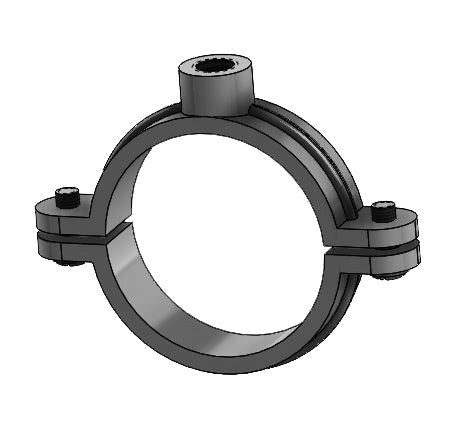

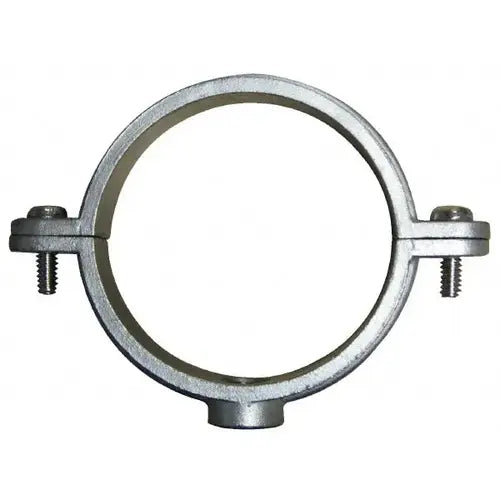

HANGERS 41SSI0300 3-in Split Ring Hanger

Product Description

The HANGERS 41SSI0300 is a split ring hanger designed to support non-insulated pipe lines. It can be installed horizontally or vertically. Made from grade 304 stainless steel, this hanger provides durability in corrosive environments. It fits a nominal pipe size of three inches and a rod size of one-half inch. The product meets the standards set by Manufacturers' Standardization Society MSS SP-58 and SP-69 (Type# 12).

• Designed for suspension of stationary pipe lines.
• Constructed from 304 stainless steel for corrosion resistance.
• Complies with MSS SP-58 and SP-69 (Type# 12).

Product Highlights

This hanger is suitable for numerous applications in plumbing and construction, especially where pipe organization and support are critical.

Product Information

Standard Information

• Manufacturer: Empire Industries
• Product Type: Split Ring Hanger

Technical Specifications

• Nominal Pipe Size: 3 in
• Pipe Outside Diameter (Decimal Inch): 3.5000
• Rod Size: 1/2 in
• Material: Stainless Steel
• Material Grade: 304
• Load Capacity: 300 lb
• Thread Size: 1/4 in
• Tube OD: 3-1/2 in
• Dimensions: 4-5/8 in H x 5-11/16 in W
• Finish: Stainless Steel
• Series: 41 Series
