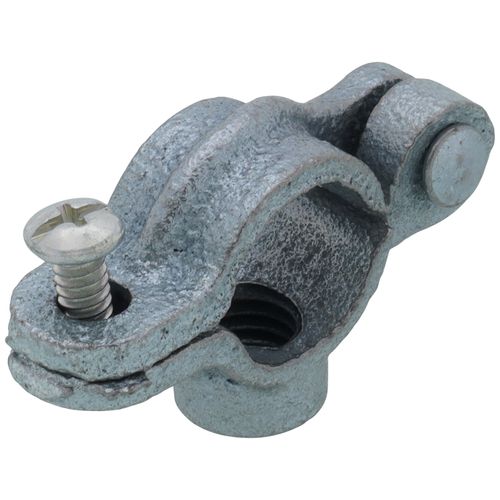

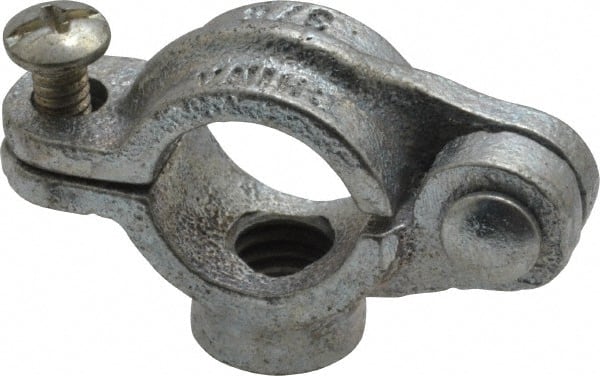

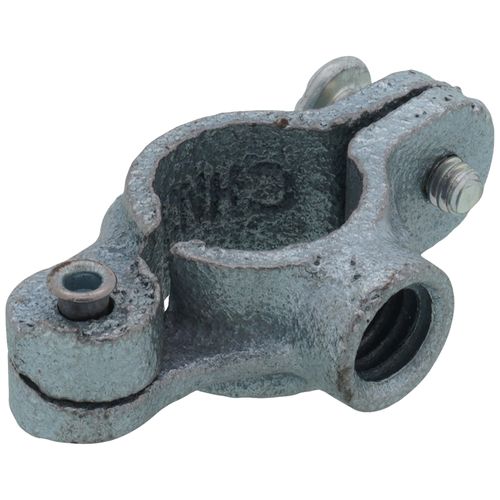

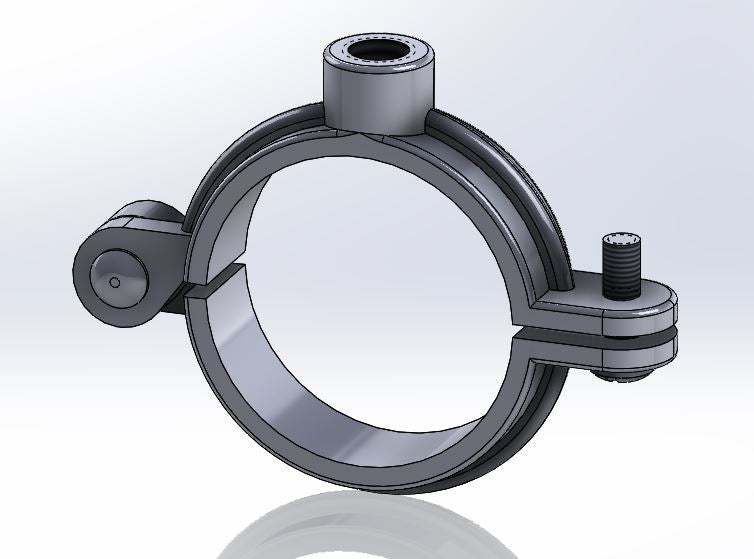

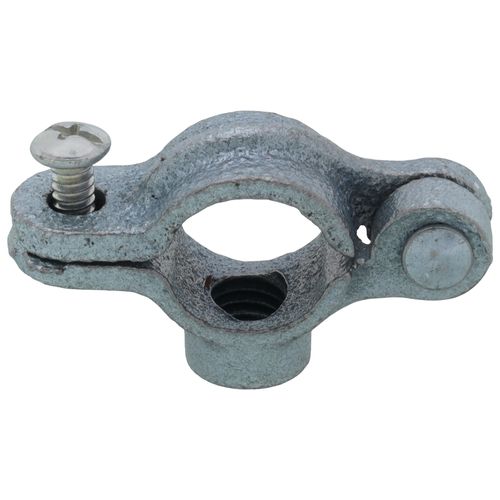

HANGERS 41HG0038 3/8-Inch Electro-Galvanized Split Ring Hanger

Product Description

The HANGERS 41HG0038 is a dependable split ring extension hanger, useful for suspending pipe lines in both horizontal and vertical orientations. Made from malleable iron with an electro-galvanized finish, this hanger is designed to resist corrosion. The clever hinged structure allows for straightforward installation and removal. It conveniently fits a 3/8-inch threaded rod and serves well in light to medium-duty applications.

• Designed for the suspension of stationary pipe lines without insulation.
• Hinged design for simple installation.
• Meets various federal specifications and industry standards.

Product Highlights

This split ring hanger is engineered for effective use in HVAC, plumbing, and construction settings.

Product Information

Standard Information

• MPN: 41HG0038
• Product Type: Split Ring Hanger

Technical Specifications

• Material: Malleable Iron
• Finish: Electro-Galvanized
• Nominal Pipe Size: 3/8
• Pipe Size: 0.675 O.D
• Rod Size: 3/8 inches
• Load Capacity: 180.00 Lbs
• Weight: 0.084 Pounds
