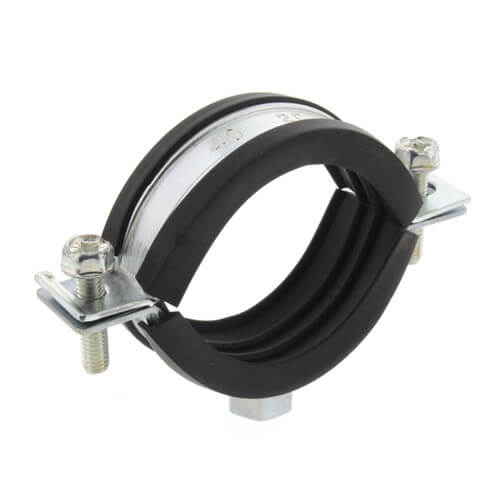

HANGERS 40HS0009 Split Ring Hanger for 2 in CTS Pipe

Product Description

The HANGERS 40HS0009 is a split ring hanger made for suspending stationary pipelines. This product is made from carbon steel and has an electro-galvanized finish. It is suitable for both horizontal and vertical installation of insulated and non-insulated pipes.

• Supports load capacity of one hundred eighty pounds
• Accommodates a three-eighths by sixteen rod
• Includes EPDM insulation liner to protect the piping

Product Highlights

This hanger is designed for easy installation and provides strong support for various pipe applications.

Product Information

Standard Information

• Brand: Hangers
• Material: Carbon Steel

Technical Specifications

• Finish: Electro-Galvanized
• Pipe/Tube Size: 2 in CTS
• Rod Size: 3/8-16
• Load Capacity: 180 lb
• Length: 3-15/16 in
• Height: 3 in
• Series: FIG 40HS Handy
• Application: Suspension of stationary non-insulated pipe lines
• Maximum Pipe Size: 2-9/32 in
• Minimum Pipe Size: 2-1/8 in
• Product Type: Cushioned
• Standard: MSS SP-58 and SP-69
• Temperature Range: -58 to 230 °F
