Hangers 310G0050 Adjustable Swivel Ring Hanger

Product Description

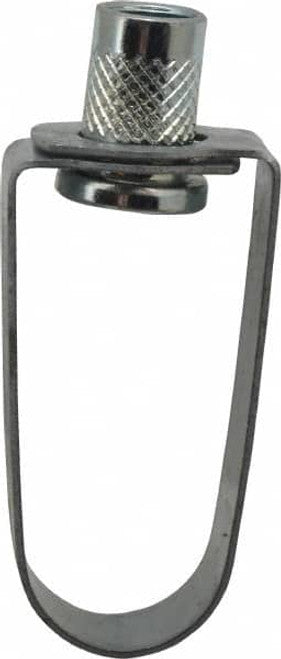

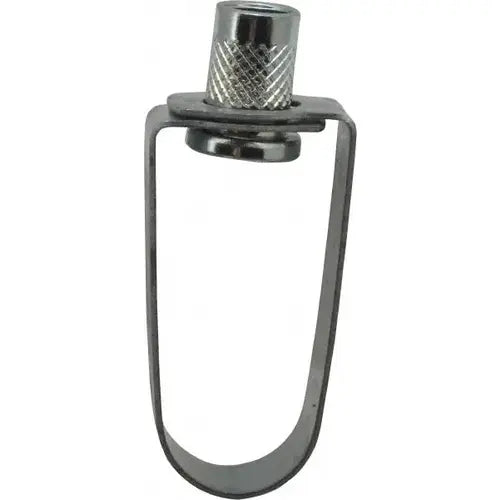

The Hangers 310G0050 is an adjustable swivel ring hanger made for suspending both insulated and non-insulated stationary pipes. It fits a 1/2-inch IPS pipe and mounts using a 3/8-inch rod. The hanger is built from carbon steel and has a galvanized finish to resist corrosion.

• Designed for suspension of insulated and non-insulated pipe lines
• Features a swivel ring for easy positioning and adjustment
• Constructed from carbon steel with a galvanized finish

Product Highlights

This hanger is suitable for use with pipes that have an outer diameter of 0.84 inches and is capable of supporting loads up to 400 pounds.

Product Information

Standard Information

• Brand: Hangers
• MPN: 310G0050

Technical Specifications

• Product Type: Emlok Swivel Ring Hanger
• Material: Carbon Steel
• Finish: Electro-Galvanized
• Nominal Pipe Size: 1/2 in
• Rod Size: 3/8 in
• Load Capacity: 400 lb
• Application: Suspension of Non-Insulated Stationary Pipe Lines
• Standards: cULus Listed, FM Approved
• Suitable For Use With: 0.84 in OD Pipe
