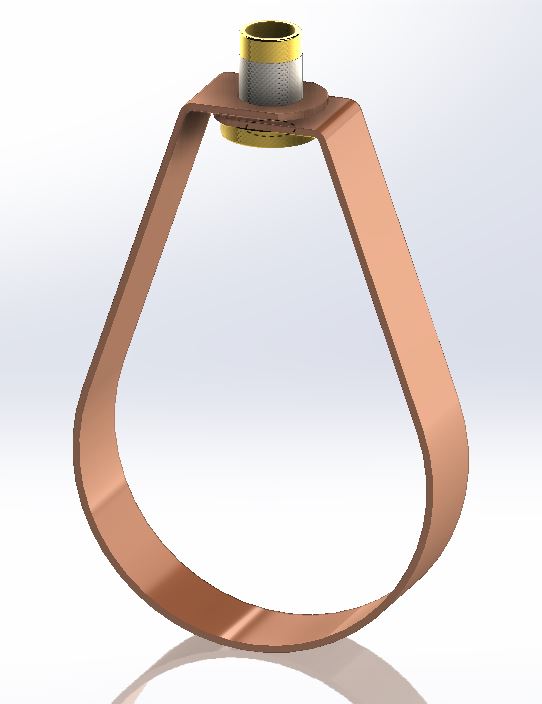

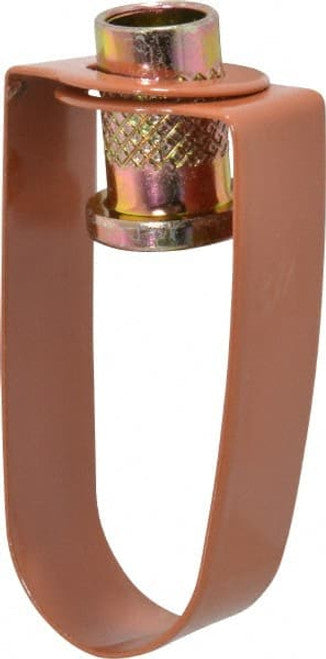

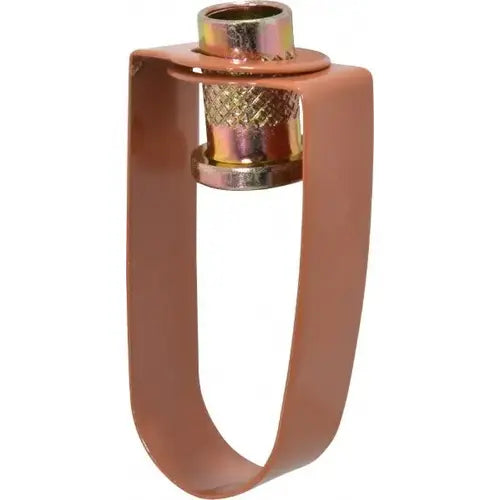

HANGERS 310CTI0075 Adjustable Swivel Ring Hanger

Product Description

The HANGERS 310CTI0075 is an adjustable swivel ring hanger made for supporting stationary, non-insulated copper pipes. This hanger fits a three-quarter inch pipe size and works with a three-eighths inch rod size. It is made from durable carbon steel and has a finish either in copper epoxy or copper plating.

• Designed for stationary, non-insulated copper lines
• Holds pipes with a diameter of three-quarter inches
• Compatible with rods of three-eighths inch size

Product Highlights

This hanger is suited for use with seven-eighths inch outer diameter pipe and three-quarter inch copper tubing.

Product Information

Standard Information

• Manufacturer Part Number: 310CTI0075
• Material: Carbon Steel

Technical Specifications

• Finish: Copper Epoxy Coated (Copper-Gard)
• Load Capacity: 400 lb
• Pipe Size: 3/4 in
• Rod Size: 3/8 in
• Series: FIG 310 Emlok
• Suitable For Use With: 7/8 in OD Pipe and 3/4 in Copper Tubing
• Product Type: Emlok Swivel Ring Hanger
• Type: Adjustable
