Haier UAPT1824A Supply Plenum for USYM18U/USYM24U

Product Description

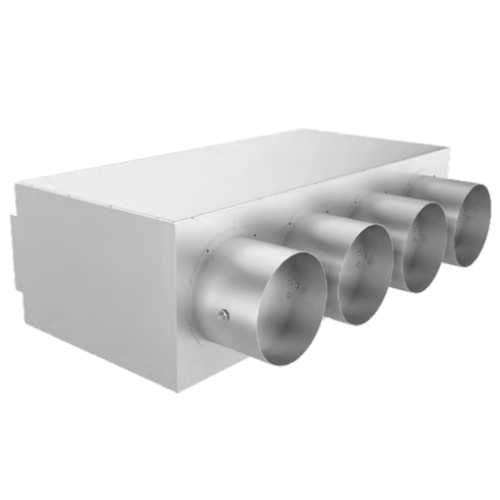

The Haier UAPT1824A Supply Plenum is a duct distribution accessory designed for use with compatible Haier mid-static ducted indoor units. Installed on the discharge outlet flange of the air handler, this plenum helps distribute conditioned air through connected ductwork to multiple areas within a building. Constructed from durable sheet metal, it features four round duct takeoffs with integrated air balancing dampers to support efficient airflow management and system performance.

• Designed for compatible 18K and 24K Haier mid-static ducted indoor units
• Mounts directly to the air handler discharge outlet flange
• Four round duct outlets for air distribution
• Integrated air balancing dampers for airflow adjustment
• Durable sheet metal construction
• Suitable for residential and light commercial ducted HVAC applications

Product Highlights

This supply plenum simplifies duct connections for compatible Haier ducted systems while helping maintain balanced airflow throughout the conditioned space. Its integrated dampers allow installers to fine-tune air delivery for improved comfort and system efficiency.

Product Information

Standard Information

• Brand: Haier
• MPN: UAPT1824A
• Product Type: Supply Plenum

Technical Specifications

• Model: UAPT1824A
• Application: Supply Air Distribution
• Compatible Indoor Units: USYM18U, USYM24U
• Construction: 24 Gauge Sheet Metal
• Finish: Unfinished
• Number of Outlets: 4
• Outlet Size: 8 Inch Round
• Height: 12 Inches
• Width: 36-3/8 Inches
• Depth: 18 Inches
• Mounting Location: Air Handler Discharge Outlet
• Integrated Features: Air Balancing Dampers
• Shipping Weight: Approximately 18 lbs

Note: This accessory is designed for use with compatible Haier mid-static ducted indoor units and is not a standalone HVAC system component. Compatibility should be verified prior to installation.
