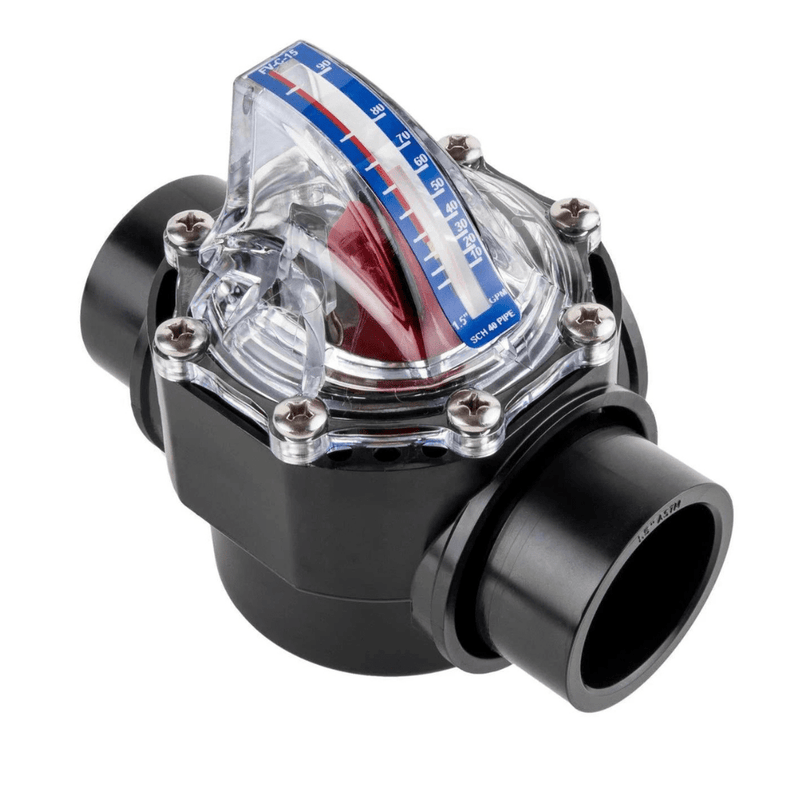

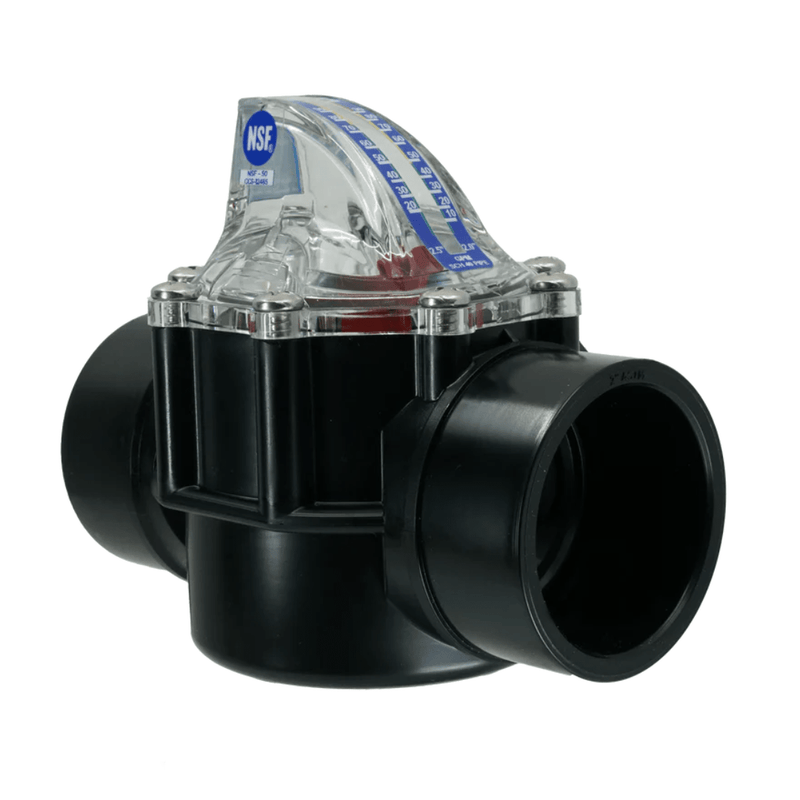

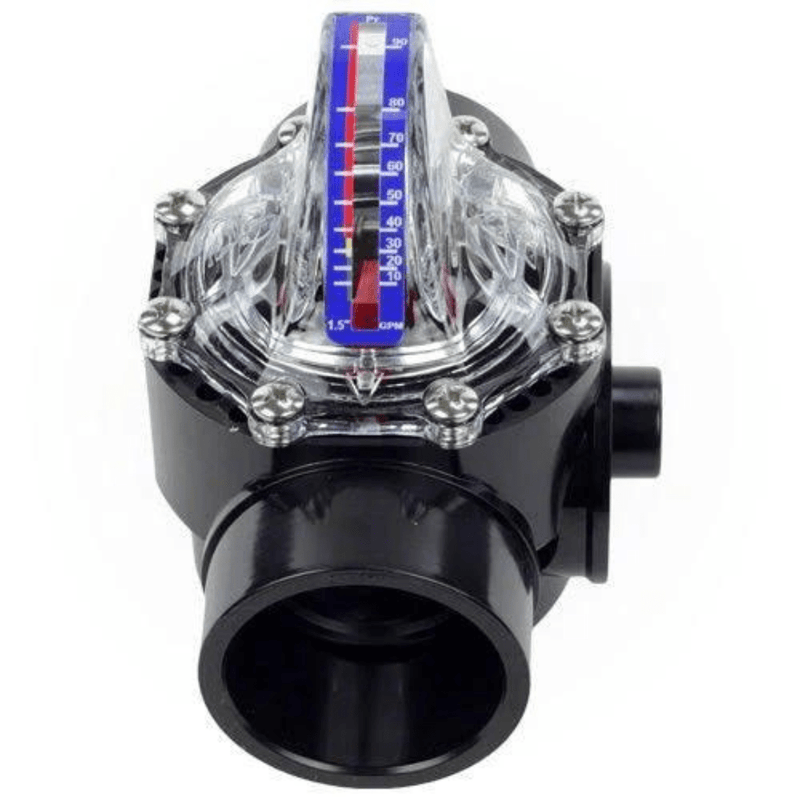

H2Flow Controls FV-15 FlowVis Flow Meter 1.5in

Product Description

The H2FLOW CONTROLS FV-15 FlowVis flow meter revolutionizes flow measurement in pool and spa applications. With high accuracy, installation flexibility, and NSF 50 certified models, it's suitable for commercial applications. It can be installed horizontally, vertically, or upside-down with little-to-zero straight pipe requirements. Doubles as a check valve.

• Installs horizontally, vertically, or even upside-down
• Can be installed with little-to-zero straight pipe requirements with no effect on accuracy
• ≥98.1% accuracy across the entire model range

Product Highlights

The FlowVis flow meter is easy to install, requires no calibration, and is manufactured in the USA. It features a clear, easy-to-read scale in GPM or optional LPM or m3/h.

Product Information

Standard Information

• Brand: H2FLOW CONTROLS
• Manufacturer Part Number: FV-15
• Country of Origin: USA

Technical Specifications

• Brand: H2flow Controls
• Application: Pool, Spa
• Commercial, Residential, or Professional: Commercial
• Material: CPVC
• Pressure Rating: 50 psi
• Part No.: FV-15, FV15
• MPN: FV-15
• Type: Flow Meter
• Country of Origin: United States
