Product Description

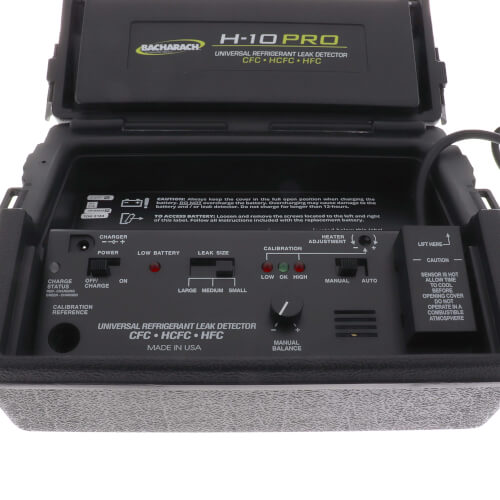

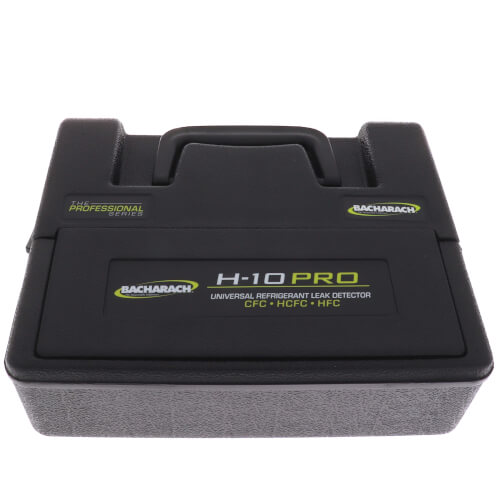

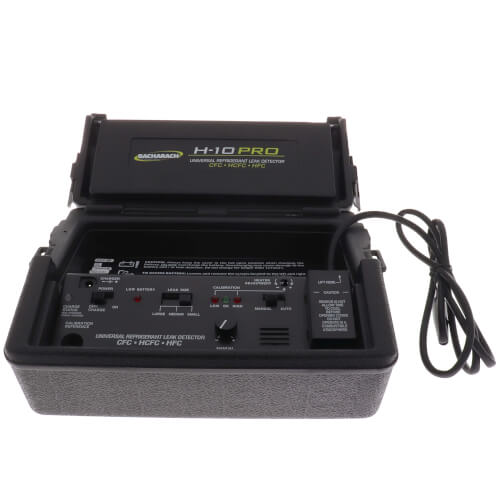

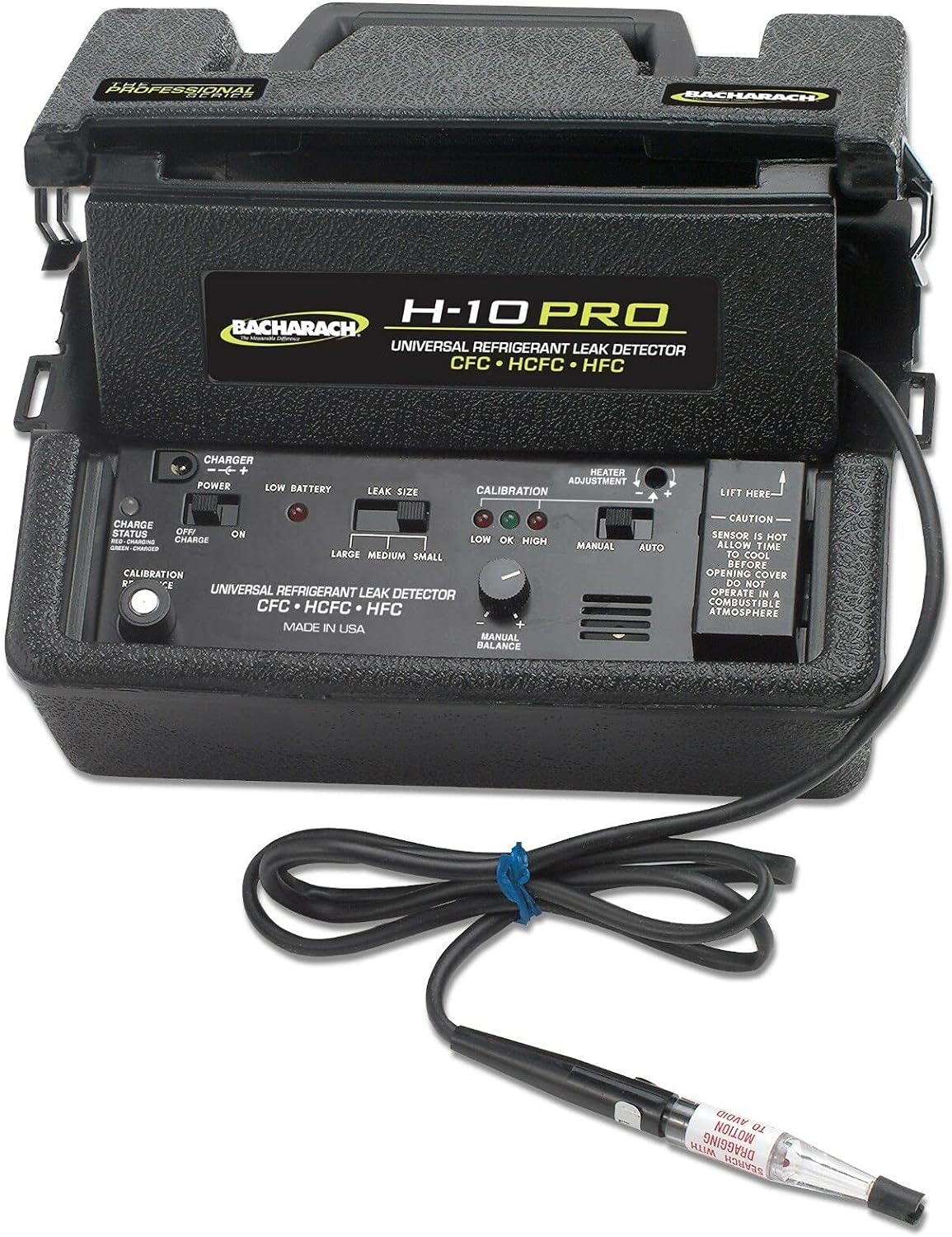

The Bacharach 3015-8004 H-10 Pro Refrigerant Leak Detector is a versatile tool capable of detecting various refrigerants, including CFCs, HFCs, and HCFCs. This device offers high-sensitivity detection and includes dual power sources for operational flexibility.
- Detects refrigerants like R12, R22, R134a, R404a, R410a, R502, R507.
- Dual power sources: rechargeable battery and DC wall adapter.
- Visual sensor calibration with reference leak bottle.
Product Highlights
Includes a headphone port, pinpointing accuracy, and quick response time.
Product Information
Standard Information
-
Manufacturer: Bacharach
-
Brand: Bacharach
-
MPN: 3015-8004
Technical Specifications
-
Sensing Element: Positive Ion Emission Heated Diode
-
Sensitivity: 0.006 oz/yr (stationary), 0.1 oz/yr (moving probe per SAE J2791)
-
Sensor Life: 1 year (typical)
-
Warm-Up Time: Approx. 2 minutes
-
Response Time: 1 second
-
Accuracy: Exceeds SAE J1627
-
Operating Temperature: 32°F to 104°F (0°C to 40°C)
-
Flow Rate: 90 cc/min (typical)
-
Auto-Background Adjust: Yes, automatic mode only
-
Leak Indicators: Visible LED at probe tip and audible buzzer
-
Probe Length: Flexible 4.5 ft.
-
Dimensions: 10.5 inches L x 8.3 inches W x 5.4 inches H
-
Weight: Approx. 5.1 lb.
-
Power: 12 VDC internal rechargeable battery, 100-240 VAC wall adapter/universal battery charger
-
Battery Life: 3 hours (typical)
-
Warranty: 3 years (excluding sensitive parts like sensors and batteries)
-
Country of Origin: United States
