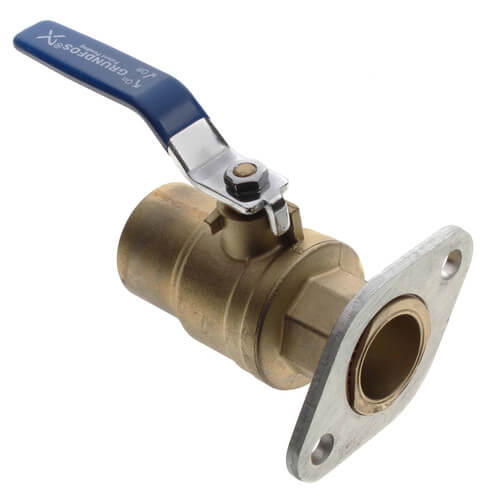

Grundfos 96806138 1-1/2 in. Brass Sweat Valve Kit

Product Description

The Grundfos 96806138 is a 1-1/2 inch Brass Sweat Valve Kit designed for use with various Grundfos pump models, including the UP and ALPHA series. This kit is essential for ensuring efficient fluid flow and system integrity in heating and plumbing applications.

• Compatible with Grundfos ALPHA pumps, UP pumps, and UPM pumps
• Includes multiple necessary components for installation
• Constructed using durable brass material

Product Highlights

This valve kit provides necessary connections and isolation points, making it a critical component for pump installations.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 96806138

Technical Specifications

• Size: 1-1/2 inches
• Connection Type: Sweat

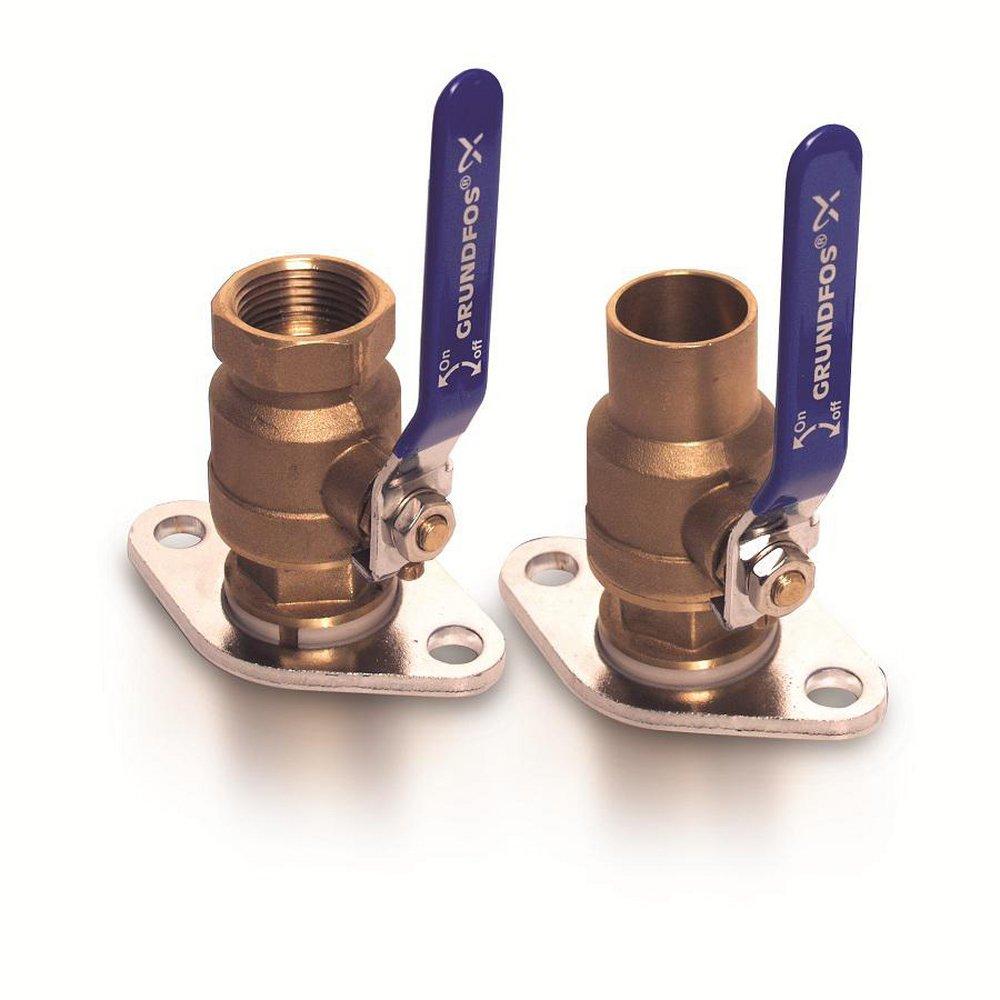

• Includes: (2) Chrome Plated Steel Rotating Flanges, (2) Lever Handle Ball Valves, (2) Dielectric Sleeves, (2) EPDM Gaskets, and (4) Bolts with Nuts
• Industry Standards: IAPMO 6591 Listed
• Maximum Temperature: 230 degrees Fahrenheit
• Maximum Pressure: 150 PSI
• Overall Dimensions: 4.58 inches Face to Face, 2.97 inches Center of Port to Top
