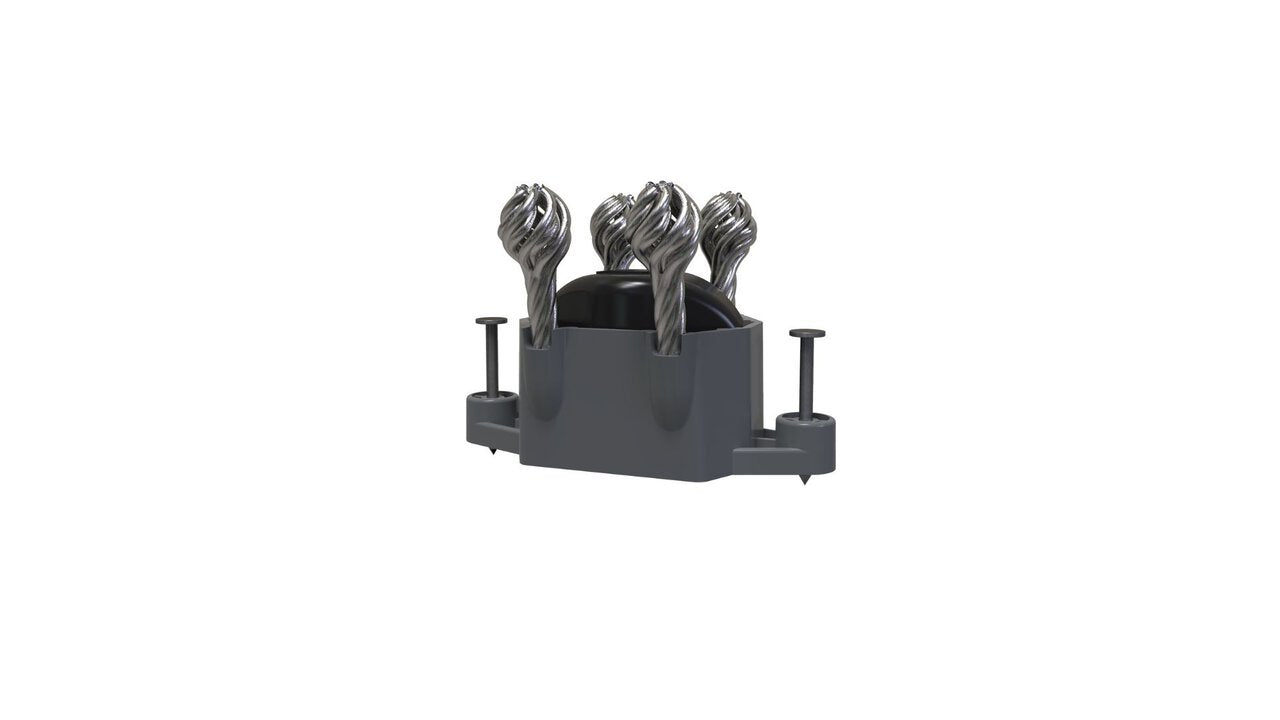

Gripple SX-WF spider (wood form)

Product Description

The GRIPPLE SX-WF Spider (Wood Form) is a cast-in-place concrete insert designed for secure anchoring into wood forms. Installed before the concrete pour, it creates a reliable threaded fixing point for suspending MEP services, eliminating the need for post-installation drilling or hot works. This ensures clean, fast, and safe installations for pipework, ductwork, and cable tray.

• Designed for fast, secure anchoring into wood deck
• Installed before concrete pour, eliminating post-install drilling or hot works
• Creates a reliable fixing point for suspending MEP services

Product Highlights

Secure cast-in-place anchor for wood forms, simplifying MEP service suspension without post-pour drilling.

Product Information

Standard Information

• Brand: GRIPPLE
• Manufacturer Part Number: SX-WF

Technical Specifications

• Safe Working Load (Standard): 3000 lbs
• Safe Working Load (Low Profile): 1700 lbs
• Available Rod Sizes: 3/8-3/4
• Available Toggle Kits: No.2-No.5
• Forms Compatibility: Wood
• Certifications: ICC-ES ESR-4190, UL 2239, UL 2043 for plenum use, LARR approved by the Los Angeles Dept. of Building & Safety
