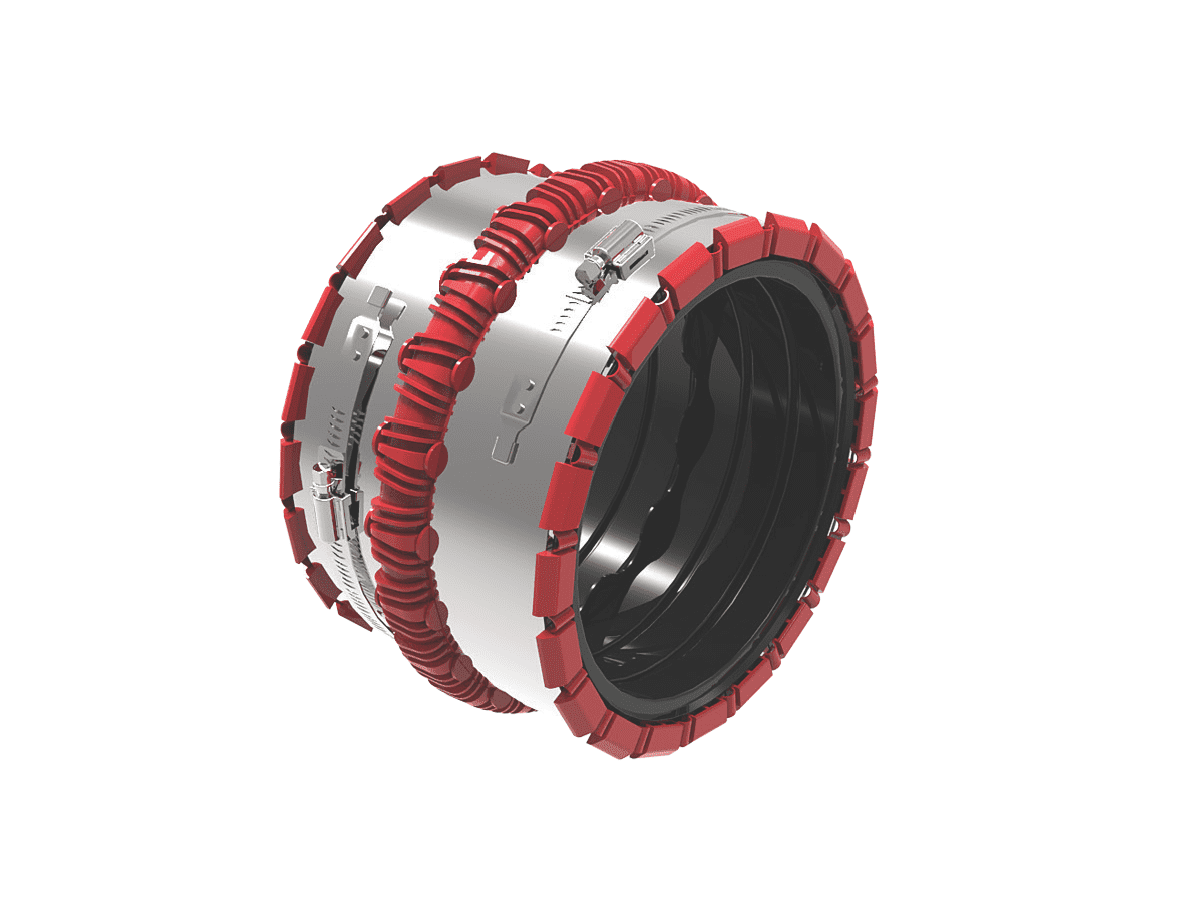

Gripper 19225 Maxadaptor 12 in

Product Description

The Gripper 19225 Maxadaptor is a durable repair coupling designed for gravity flow and non-pressure sewer and drainage pipes. It connects various pipe materials, including clay, ductile iron, asphalt cement, cast iron, and plastic. This coupling includes an internal pipe stop for accurate installation and minimizes noise and vibration during operation.

• Made with AISI 304 Series stainless steel for strong, durable construction.
• Features a Click-Lock clamping system and high-impact polyamide securing cage for stable shear load support.
• Equipped with an EPDM synthetic rubber sealing gasket that resists UV rays and other environmental conditions.

Product Highlights

This coupling is effective for connecting different types of sewer and drainage systems while providing a watertight seal.

Product Information

Standard Information

• Fitting Size: 12 in
• Material: 304 Stainless Steel

Technical Specifications

• Elongation: 200 %
• Tensile Strength: 1000 psi
• Torque Rating: 80 in-lb
• Max Coupling OD Range min: 12.50 in
• Max Coupling OD Range max: 15.00 in
• Components: AISI 304 Series Stainless Steel, EPDM Rubber Gasket
