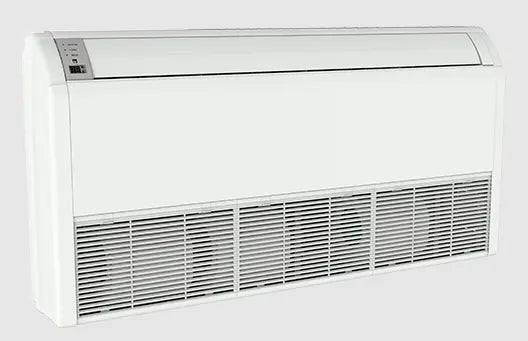

Gree FLR12HP230V1R32AH Floor Ceiling Mini Split Indoor Unit 12000 Btu/h 230 Volt R32

Product Description

The GREE FLR12HP230V1R32AH is a 12,000 BTU/h floor and ceiling indoor air handler designed for ductless mini split systems operating on R32 refrigerant at 230 volts. This unit mounts low on the wall near the floor or overhead near the ceiling, giving installers flexibility in spaces where a standard wall-mount or cassette installation is not practical. It is part of the GREE All Match lineup, pairing with compatible outdoor condensing units for single-zone heating and cooling. Licensed HVAC technicians handle installation and commissioning. Key electrical ratings include a 7-amp cooling current draw and an 11-amp minimum circuit ampacity (MCA) with a 15-amp maximum overcurrent protection (MOCP).

This indoor unit suits residential and light commercial applications where layout or aesthetics make traditional wall-mount units impractical. Open floor plans, sunrooms, server rooms, additions, and spaces with high ceilings or limited wall space are common install scenarios. The floor mount position allows conditioned air to sweep across the floor, while the ceiling mount position delivers airflow from above. Both orientations use the same unit body. The R32 refrigerant charge is handled by the certified technician at the outdoor unit connection point following manufacturer and local refrigerant-handling requirements.

Key Features

• Dual-position design installs as a floor console or ceiling-mounted unit depending on job requirements
• 12,000 BTU/h cooling capacity with DC inverter-driven performance via the paired outdoor unit
• R32 refrigerant — lower global warming potential than R410A, requires certified handling
• 208/230-volt, single-phase operation with 11-amp MCA and 15-amp MOCP
• Copper tube and aluminum fin coil construction for durable heat exchange
• Compatible with GREE All Match outdoor units for flexible multi-configuration pairing

Compatibility

Designed for use with compatible GREE All Match R32 outdoor condensing units in single-zone ductless configurations. Verify outdoor unit compatibility and AHRI certification pairing before installation. No additional model-specific compatibility data was provided with this listing.

Installation Notes

Installation must be performed by an EPA Section 608 certified HVAC technician due to the R32 refrigerant, which is classified as a mildly flammable gas requiring specific safety precautions during handling and leak testing. Shut down all power at the disconnect and outdoor unit breaker before making any electrical or refrigerant connections. Follow the manufacturer service manual and all applicable local mechanical and electrical codes for line set routing, drain hose slope, and low-voltage wiring connections to the outdoor unit. Do not exceed the maximum line set length or elevation change specified in the outdoor unit engineering data.

Technical Specifications

• Cooling Capacity: 12,000 BTU/h
• Voltage: 208/230 volts
• Current Rating (Cooling): 7 amps
• Current Rating (Heating): 8.52 amps
• Minimum Circuit Ampacity (MCA): 11 amps
• Maximum Overcurrent Protection (MOCP): 15 amps
• Refrigerant: R32
• Mount Type: Universal Floor or Ceiling
• Unit Type: Indoor Air Handler Only

Standard Information

• Brand: GREE
• Manufacturer Part Number: FLR12HP230V1R32AH
