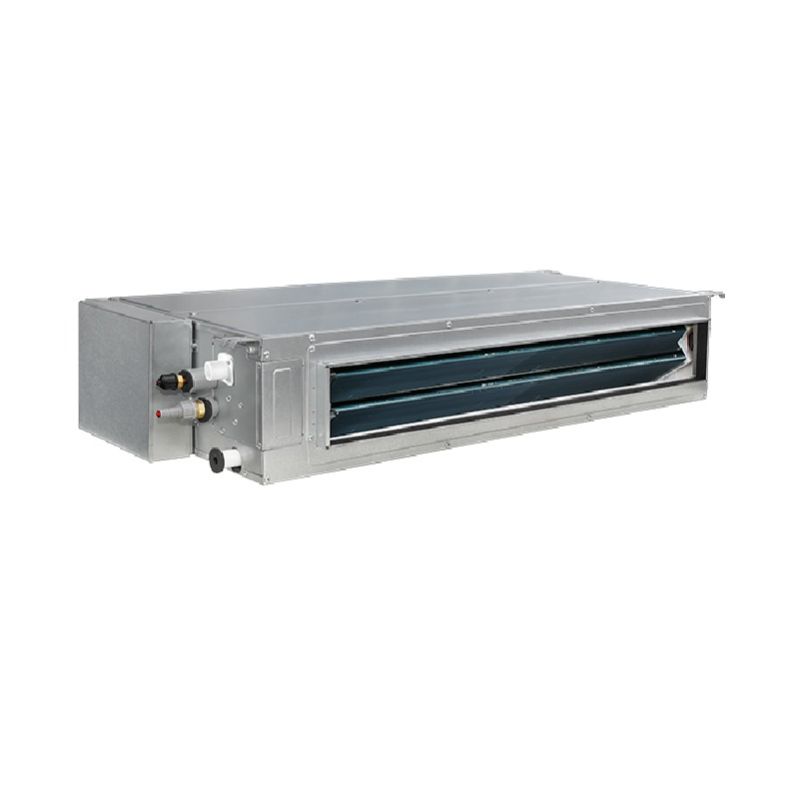

Gree DUC24HP230V1R32AH Concealed Slim Duct Mini Split Indoor Unit 24000 Btu/h 230V R32 Single Zone

Product Description

The GREE DUC24HP230V1R32AH is a 24,000 BTU/h slim duct concealed indoor unit designed for single-zone mini split heat pump systems using R32 refrigerant at 208-230 volts, 1-phase, 60 Hz. It installs inside a ceiling or wall cavity and distributes conditioned air through minimal ductwork, keeping the unit out of sight in the occupied space. A centrifugal fan with four selectable speeds moves air quietly through the system. The unit handles both heating and cooling and is built around high-efficiency DC inverter technology. A wired controller interface is included, and the unit is rated for high-static applications where standard slim duct units fall short. Licensed HVAC technicians install and commission this type of unit.

This indoor unit is suited for residential and light commercial applications where a fully concealed HVAC solution is required. The slim profile allows installation in tight ceiling or wall plenum spaces with short duct runs to supply registers. It is designed to pair with compatible GREE All Match R32 and Multi R32 outdoor units, including the Multi R32 series. The single-zone configuration supports straightforward commissioning in new construction or retrofit projects where exposed indoor equipment is unacceptable. Nominal cooling capacity is rated at 24,000 BTU/h at 95 degrees F outdoor conditions.

Key Features

• 24,000 BTU/h nominal cooling and heating capacity in a fully concealed slim duct configuration
• High-static rated centrifugal fan with 4 selectable speeds for flexible duct system design
• DC inverter technology for efficient, variable-capacity operation
• R32 refrigerant — lower global warming potential compared to R410A
• Wired controller interface included; compatible with XE72-44/E wired controller
• No auxiliary electric heater and no ventilation air intake — dedicated sensible and latent load handling only
• Operates at 208-230V/1-phase/60 Hz, suitable for standard single-phase residential and commercial electrical service

Compatibility

The DUC24HP230V1R32AH is designed to pair with GREE All Match R32 and Multi R32 compatible outdoor units. Confirm outdoor unit compatibility with the GREE All Match system pairing guide before installation. This indoor unit is not compatible with outdoor units using R410A or R454B refrigerant circuits.

Installation Notes

Installation must be performed by a licensed HVAC technician holding EPA Section 608 certification for handling R32 refrigerant. Shut off all electrical power to the system at the disconnect before making any wiring or refrigerant connections. Verify that supply voltage matches the unit nameplate rating of 208-230V/1-phase/60 Hz before energizing. Follow all applicable local mechanical and electrical codes, including NEC requirements for disconnect sizing and circuit protection, and manufacturer installation instructions for duct static pressure limits and minimum clearances.

Technical Specifications

• Cooling Capacity (Nominal): 24,000 BTU/h
• Heating Capacity (Nominal): 24,000 BTU/h
• Rated Cooling Capacity at 95 degrees F: 24,000 BTU/h
• Voltage: 208-230V / 1-phase / 60 Hz
• Refrigerant: R32
• Indoor Fan Type: Centrifugal
• Fan Speeds: 4
• Application Type: High Static Slim Duct
• Zones: 1 (Single Zone)
• Indoor Unit Display: No
• Auxiliary Electric Heater: No
• Ventilation (Outdoor Air): No
• Wired Controller Interface: Yes
• Included Controller: XE72-44/E
• EER2: 9
• Airflow (CFM): 400

Standard Information

• Brand: GREE
• Manufacturer Part Number: DUC24HP230V1R32AH
