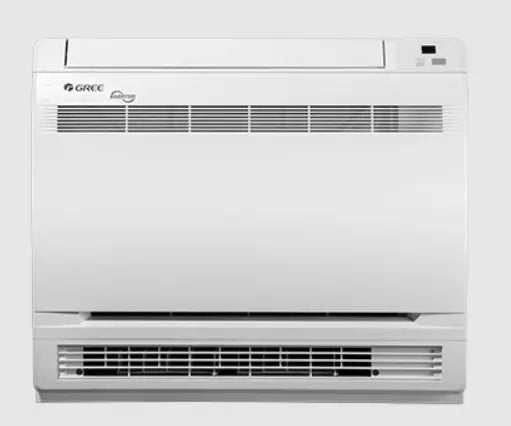

Gree CON09HP230V1R32AH Mini Console Indoor Unit 9000 Btu R32 230V

Product Description

The GREE CON09HP230V1R32AH is a low-profile floor-console indoor unit designed for single-zone mini-split heat pump systems using R32 refrigerant at 230 volts. It delivers a nominal cooling capacity of 9,100 BTU/h and a nominal heating capacity of 10,500 BTU/h, making it effective for both warm and cold climates. The centrifugal indoor fan offers 7 speed settings, allowing technicians to balance airflow against noise requirements for the space. Licensed HVAC technicians install and commission this unit as part of a matched multi-zone or single-zone mini-split system. Its low-profile cabinet is sized for installation at floor level, particularly under windows or along low wall sections where a standard wall-mount cassette would not fit.

This unit is intended for residential and light-commercial applications where floor-level air distribution is preferred or required. The console form factor suits rooms with limited wall height, large window banks, or architectural constraints that prevent high-wall or ceiling-cassette placement. Airflow is rated between 188 and 383 CFM depending on fan speed selection, giving the installing technician flexibility to match the unit output to room load. The GREE All Match platform is designed to pair with compatible GREE outdoor condensing units for single-zone or multi-zone configurations.

Key Features

• 9,100 BTU/h nominal cooling capacity and 10,500 BTU/h nominal heating capacity
• R32 refrigerant with G20 Ultra Low Frequency Torque Control inverter technology
• Centrifugal indoor fan with 7 selectable speeds and airflow range of 188 to 383 CFM
• Low-profile floor-console cabinet sized at 27.5625 inches wide, 23.625 inches tall, and 8.46875 inches deep for under-window or low-wall installation
• Power factor correction and low-voltage startup capability built in
• Intelligent defrost, intelligent preheating, and memory and power-failure recovery functions
• Wired controller interface included; self-diagnosis capability for field troubleshooting

Compatibility

The CON09HP230V1R32AH is part of the GREE All Match Mini Console R32 lineup and is designed to pair with compatible GREE R32 outdoor condensing units, including the VIR09HP230V1R32AO, ENV09HP230V1R32AO, and SAP09HP230V1R32AO, as referenced in GREE submittal documentation. Confirm outdoor unit compatibility and system refrigerant charge requirements with the applicable GREE submittal data before installation.

Installation Notes

Installation must be performed by an EPA Section 608 certified HVAC technician familiar with R32 flammable refrigerant handling procedures and local mechanical codes. Shut off all power to the system at the disconnect before making any electrical or refrigerant connections. R32 is an A2L mildly flammable refrigerant and requires adherence to applicable safety standards, including proper ventilation of the work area and use of approved leak-detection equipment. Follow the GREE submittal data and installation manual for line-set sizing, clearance requirements, and commissioning procedures.

Technical Specifications

• Cooling Capacity: 9,100 BTU/h
• Heating Capacity: 10,500 BTU/h
• Refrigerant Type: R32
• Voltage: 230 volts
• SEER2: 23.3
• Energy Efficiency Ratio (EER): 23.3
• Airflow Range: 188 to 383 CFM
• Fan Type: Centrifugal
• Fan Speeds: 7
• Dehumidification: 1.69 pints per hour
• Indoor Unit Width: 27.5625 inches
• Indoor Unit Height: 23.625 inches
• Indoor Unit Depth: 8.46875 inches
• Weight: 33.1 pounds
• Number of Zones: 1
• WiFi Included: No
• Auxiliary Electric Heater: No

Standard Information

• Brand: GREE
• Manufacturer Part Number: CON09HP230V1R32AH
