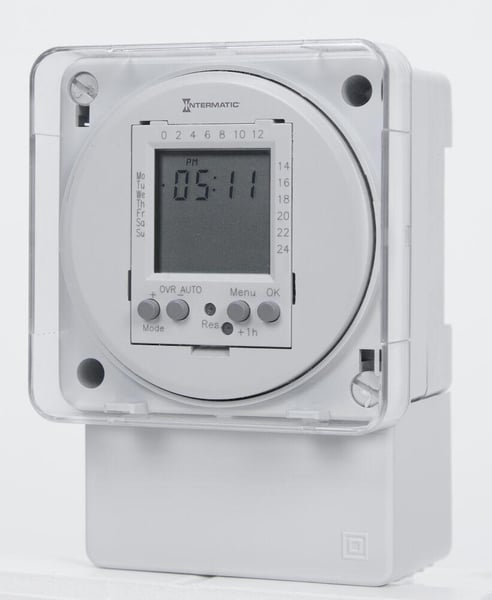

GRASSLIN FM1D20A-24 1-Channel Electronic Timer Switch

Product Description

The GRASSLIN FM1D20A-24 is a 1-channel electronic timer switch ideal for 24-hour or 7-day time-based switching. It can control HVAC circuits, lighting, or machinery in various automation systems.

• Programmable for 24 hours or 7 days
• Includes a large LCD display
• Manual override for convenience

Product Highlights

This timer switch allows for precise control over electrical devices, ensuring reliable operation in both residential and commercial settings.

Product Information

Standard Information

• Brand: GRASSLIN
• Manufacturer Part Number: FM1D20A-24

Technical Specifications

• Number of Channels: 1
• Voltage Rating: 24 VAC/VDC
• Amperage Rating: 16 A
• Contact Form: 1NO-1NC, SPDT
• Mounting Type: DIN Rail/Surface
• Enclosure Type: NEMA 1
• Operating Temperature: -13 to 131 degrees F
• Dimensions: 4 inches H x 2.83 inches W x 2.06 inches D
• Display Type: LCD
• Electrical Connections: Screw
• Horsepower: 1 hp, 1/2 hp
• Operation Mode: 24 hr/7 Days
• Time Setting: 1 min to 24 hr/7 Days
• Number of Pulse Events: 20
• Battery Type: CR2032 Lithium
• Relay Output Configuration: Dry Contact, Maintain operation
• Clock Accuracy: ±4 minutes per year
• Special Functions: Day light Saving Time (DST)
• Schedules: 20 event or 50 event per order
• Manual Override: 2 push buttons (one for each circuit)
• Operating Humidity: 0% to 95% Non-condensing
• Weight: 0.5 lb (0.23 Kg)
• Approvals: UL File #E10694, CE
