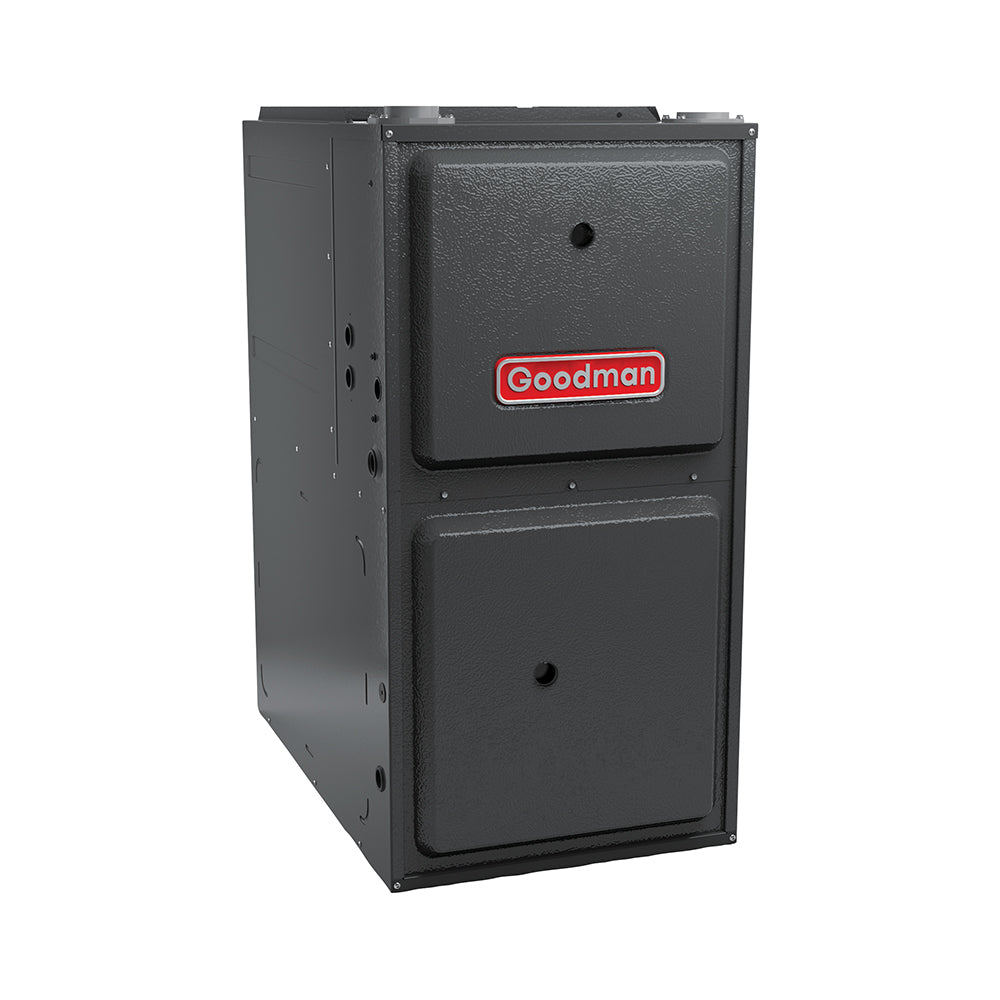

Goodman GMES960804CN Gas Furnace Multi Speed ECM, Single Stage

Product Description

The Goodman GMES960804CN is a 96% AFUE gas furnace with a multi-speed ECM and single-stage operation. Designed for upflow or horizontal installation, it delivers 80000 BTUH/H. The furnace features a heavy-duty aluminized-steel tubular heat exchanger and a stainless-steel sloped secondary heat exchanger.

• Equipped with a multi-speed ECM blower motor and single-stage gas valve.
• Features a self-diagnostic control board with constant memory.
• Certified for direct vent (2-pipe) or non-direct vent (1 pipe) applications.

Product Highlights

This Goodman gas furnace ensures efficient heating with its robust design and versatile installation options, suitable for residential use.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GMES960804CN
• Country of Origin: USA

Technical Specifications

• AFUE: 96 %
• Class: Gas Furnace
• Family: GMES96
• Category: Gas Furnace
• Unit Type: Indoor
• Unit Depth: 29 in
• Unit Width: 21 in
• Power Phase: 1 Ph
• Unit Height: 34-1/2 in
• Min. Circuit: 14.1 A
• Power Voltage: 115 V
• Power Frequency: 60 Hz
• Model Efficiency: 0.96
• Motor Speed Type: Multi Speed ECM
• Product ID Bar Code: GMES960804CN
• High-Fire Input Capacity: 80000 Btu
• High-Fire Output Capacity: 76880
• Installation Type: Freestanding
• Fuel Type: Liquefied Petroleum Gas
• Gas Valve Type: Single Stage
• Vent Diameter: 2 in;3 in
• Dimensions - (Blower Diameter): 11 in
• Dimensions - (Blower Width): 10 in
• Filter Quantity: 1.0
• Max Overcurrent Protection: 15.0 A
• Blower Motor HorsePower: 3/4 metric hp
• ANSI Certifed: Yes
• ETL Listed: Yes
• FER Compliant: Yes
• Cabinet air leakage (Qleak): less than or equal to 2%
• Heating BTU: 80000
• High Fire Input: 80000 BTU
• High Fire Output: 76800 BTU
• Maximum Air Flow: 1600 CFM
• Low NOx Emissions: Yes
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 11.7 Amps
• Recommended Breaker Size: 15 Amps
• Flue Connection Size: 2 Inches
• Product Height: 34 1/2 Inches
• Product Width: 21 Inches
• Product Depth: 28 3/4 Inches
• AHRI Reference Number: 7365098
