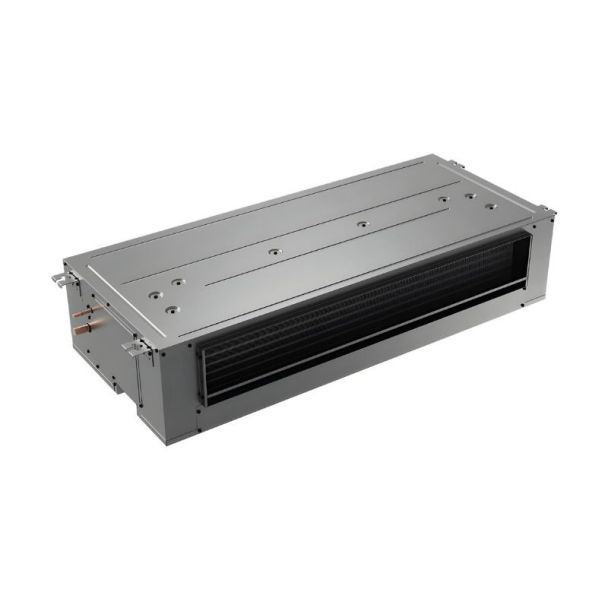

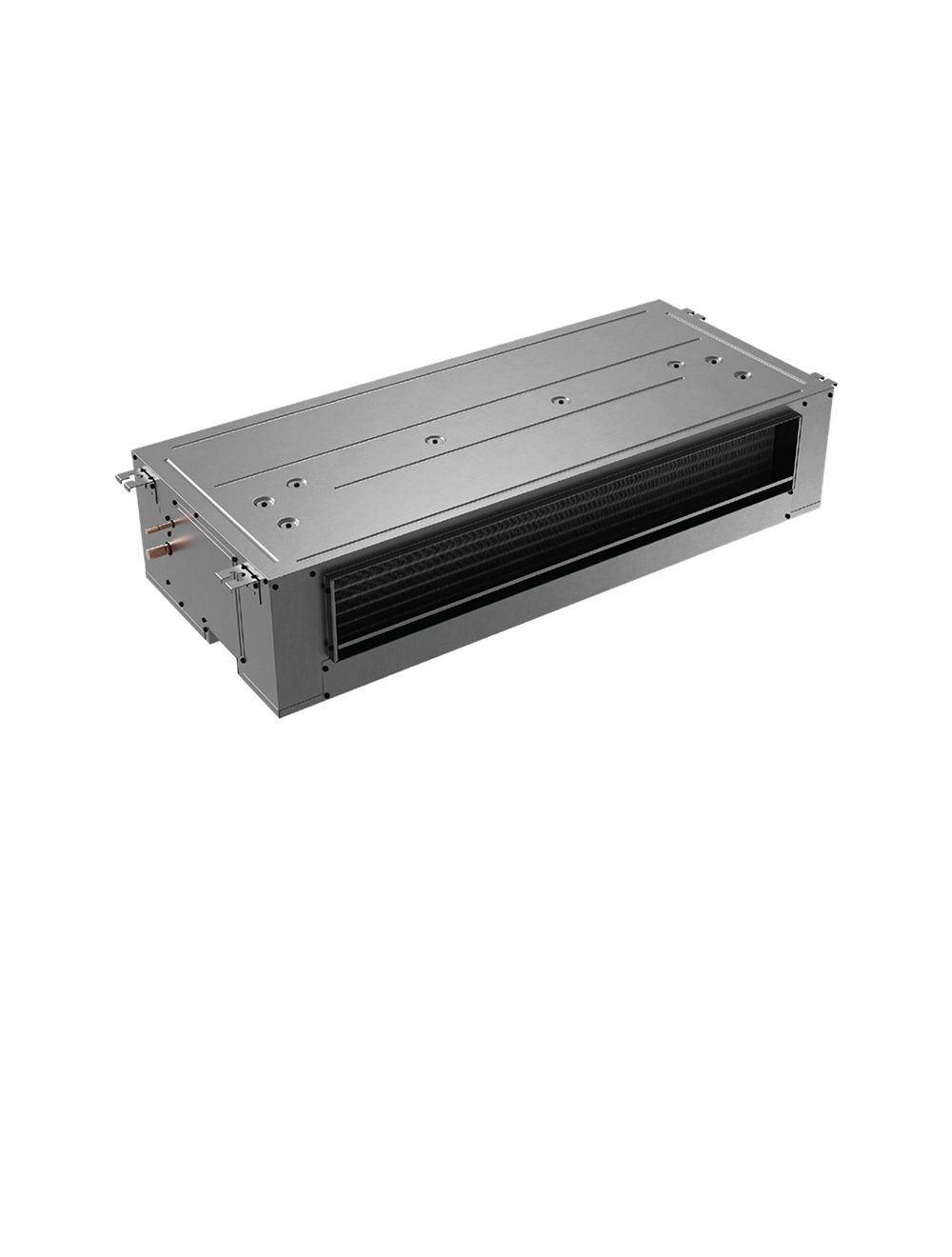

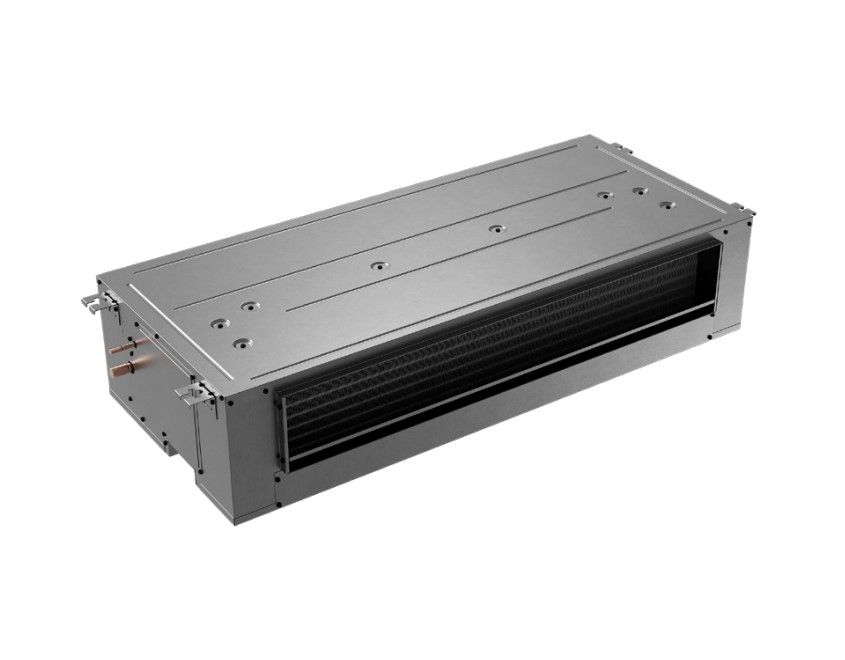

Goodman ACST24LU1306 2.0 Ton Ceiling Mount Air Handler with 6kW Electric Heat

Product Description

The Goodman ACST24LU1306 is a ceiling-mounted air handler with a capacity of two tons. This model uses R-32 refrigerant for enhanced environmental efficiency. Its design includes an ECM multi-speed motor, promoting effective air circulation. This appliance features an all-aluminum coil and comes equipped with a factory-installed thermostatic expansion valve (TXV), ensuring optimal thermal management and comfort.

• Efficient ceiling mount installation.
• Utilizes R-32 refrigerant for better efficiency.
• Includes a rust-resistant heating element with a capacity of six kilowatts.

Product Highlights

The Goodman ACST24LU1306 is ideal for indoor applications, delivering reliable cooling and heating. The unit’s construction includes durable materials like galvanized steel and a high-temperature plastic drain pan for efficient condensate control.

Product Information

Standard Information

• Brand: Goodman
• Model Number: ACST24LU1306

Technical Specifications

• Product Line: ACST
• Type: Air Handler
• Tonnage: 2.0 Tons
• Cooling BTU: 24000
• Refrigerant Type: R-32
• Configuration: Ceiling Mounted
• Indoor Installation: Yes
• Electric Heat: Yes
• Electric Heat Capacity: 6.0 kW
• Blower Motor Type: ECM Multi-Speed
• Maximum Air Flow: 934 CFM
• Minimum Air Flow: 829 CFM
• Input Voltage: 208/230 Volts
• Electrical Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 29.6 Amps
• Recommended Breaker Size: 35 Amps
• Liquid Connection Size: 3/8 Inch
• Suction Connection Size: 3/4 Inch
• Drain Outlet Diameter: 3/4 Inch
• Product Width: 54.2 Inches
• Product Height: 11 Inches
• Product Depth: 22.27 Inches
• Product Weight: 82 Pounds
• Shipping Weight: 97 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• Parts Warranty: 10 Limited Years
• TXV Installed: Yes
