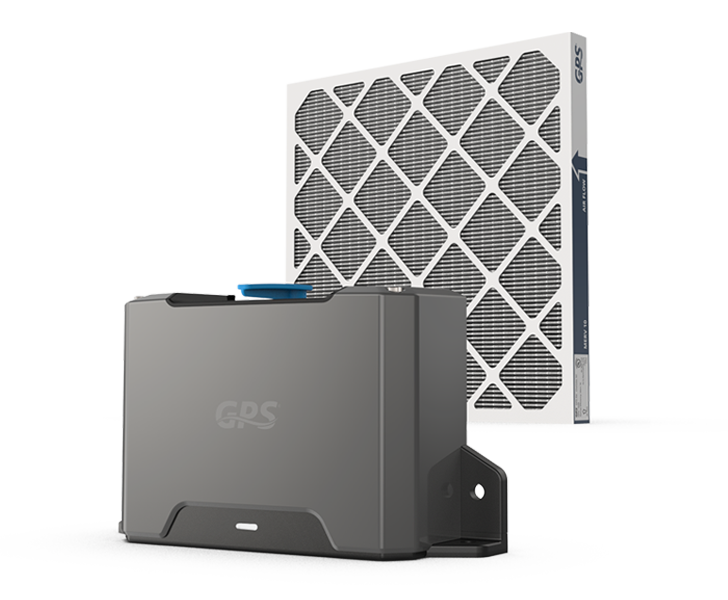

Global Plasma Solutions gps-pf-i Filter Enhancement System

Product Description

The GLOBAL PLASMA SOLUTIONS gps-pf-i is a self-cleaning filter enhancement system designed to improve sub-micron particle capture in commercial and residential air handling applications. Using electrostatic Opti-Lok technology, the unit charges airborne particles upstream of system filtration, increasing the effective efficiency of compatible synthetic-media electrostatic filters without requiring filter replacement on a shortened cycle. The gps-pf-i handles airflow from 0 to 3,500 CFM and accepts a wide input voltage range of 24 to 240 VAC at 50/60 Hz, making it adaptable to a broad range of control circuits. At 1.42 pounds and compact unit dimensions of 7.3 inches L x 2.0 inches W x 4.3 inches H, it mounts directly inside ductwork or air handling units upstream of filtration.

The gps-pf-i is intended for installation inside ducts and air handling units where enhanced particle capture is required. It is suited for both residential and light commercial HVAC systems. The unit operates across a temperature range of -20 degrees F to 140 degrees F and tolerates 0 to 100 percent relative humidity (non-condensing), making it appropriate for a range of installation environments. The integrated self-cleaning cycle draws 14W during operation versus 11W at standard run, minimizing long-term maintenance demands. HVAC technicians installing indoor air quality upgrades on existing air handling systems will find the wide voltage compatibility and compact footprint practical for retrofit applications.

Key Features

• Self-cleaning electrostatic filter enhancement using Opti-Lok technology for improved sub-micron particle capture
• Airflow capacity of 0 to 3,500 CFM supports a wide range of residential and light commercial systems
• Wide input voltage range of 24 to 240 VAC at 50/60 Hz accommodates varied control circuit configurations
• Low power consumption: 11W at standard operation, 14W during self-cleaning cycle
• Alarm contact rated at 250 VAC / 1A, N.O. dry contact for BAS or control panel integration
• UL 867, UL 2998, and FCC Part 18 listed; UL and cUL electric listings

Compatibility

Compatible with electrostatic filters using synthetic media. Designed for duct and air handling unit installation upstream of system filtration in systems with airflow up to 3,500 CFM.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the air handling unit before beginning installation. Mount the unit inside the duct or air handler upstream of the filter media per manufacturer orientation requirements. Verify that input voltage at the installation point matches the unit's 24 to 240 VAC rating before energizing, and confirm the alarm dry contact wiring is isolated from line-voltage circuits.

Technical Specifications

• Airflow Capacity: 0 to 3,500 CFM
• Input Voltage: 24 to 240 VAC
• Frequency: 50/60 Hz
• Power Consumption: 11W (standard operation), 14W (cleaning cycle)
• Alarm Contact Rating: 250 VAC / 1A, N.O. dry contact
• Unit Dimensions: 7.3 inches L x 2.0 inches W x 4.3 inches H
• Unit Weight: 1.42 pounds
• Temperature Range: -20 degrees F to 140 degrees F
• Humidity Range: 0 to 100% RH (non-condensing)
• Compatible Filter Types: Electrostatic filters using synthetic media
• Electric Listings: UL, cUL
• Certifications: UL 867, UL 2998, FCC Part 18

Standard Information

• Brand: GLOBAL PLASMA SOLUTIONS
• Manufacturer Part Number: gps-pf-i
