GLOBAL PLASMA SOLUTIONS GPS-IMOD-60-SNAP-DBL

Product Description

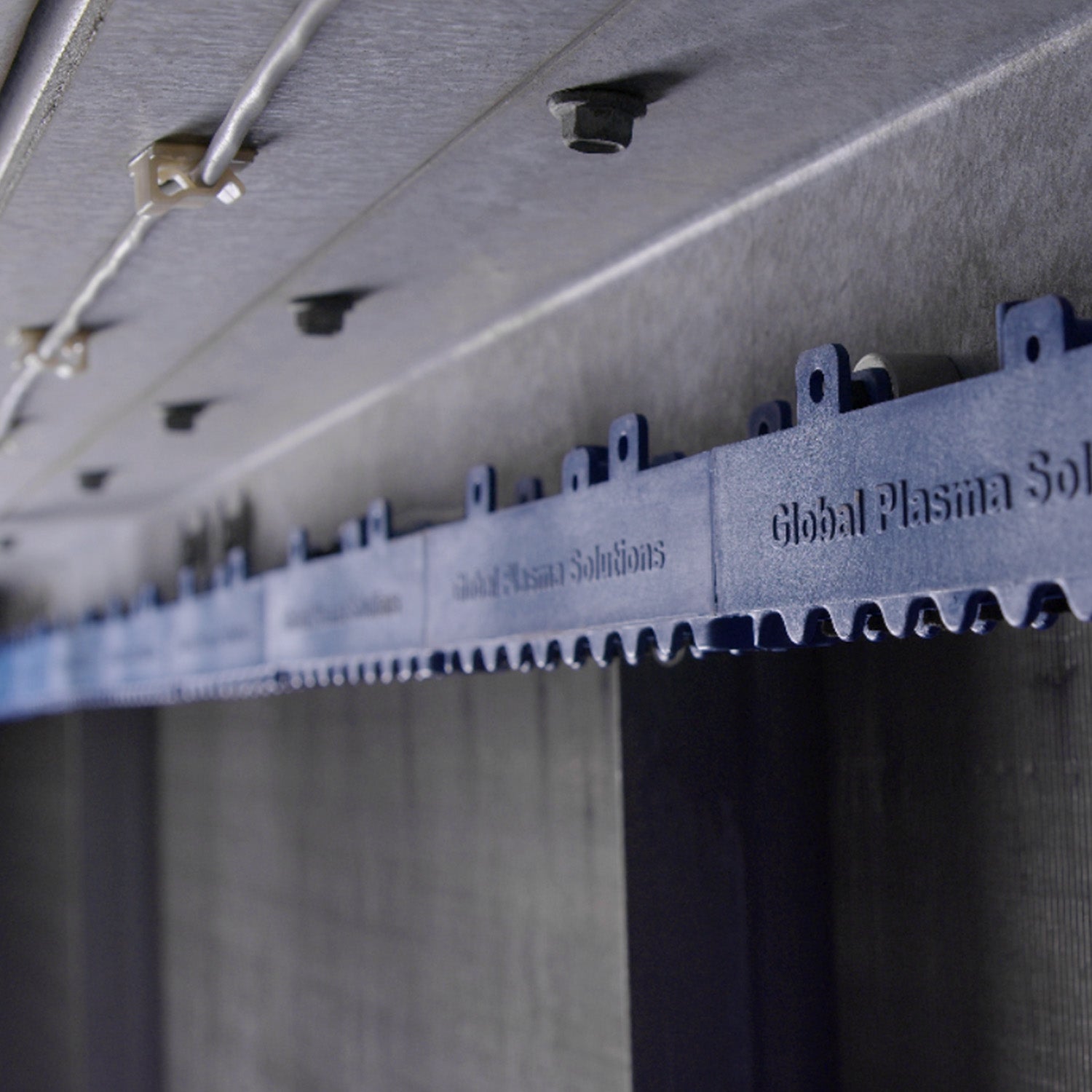

The GLOBAL PLASMA SOLUTIONS GPS-IMOD-60-SNAP-DBL is a modular needlepoint bipolar ionization system for air purification. This patented system is designed to be assembled in six-inch increments, allowing coverage across various coil widths in air handling units. With NPBI® technology, the unit generates both positive and negative ions, reducing airborne particles, neutralizing odors from VOCs, and eliminating pathogens such as bacteria, viruses, and mold. This system is effective in controlling allergens and asthma while preventing dirty sock syndrome. The modular setup makes installation straightforward and adaptable for specific HVAC needs.

• Modular design for custom lengths and easy installation.
• Incorporates NPBI technology to improve air quality.
• Reduces allergens, neutralizes odors, and kills harmful pathogens.

Product Highlights

This air purification system enhances indoor air quality by effectively targeting various pollutants.

Product Information

Standard Information

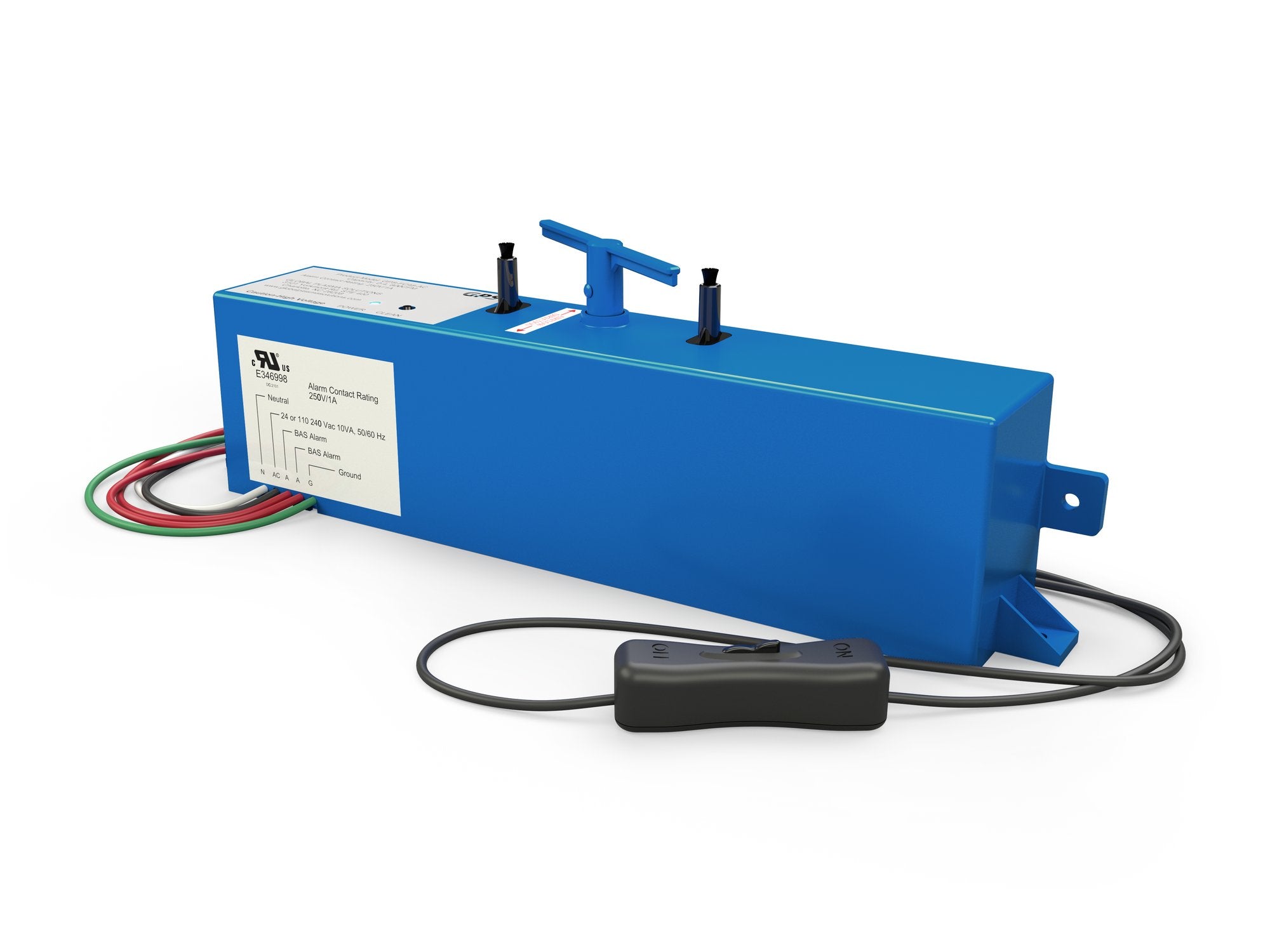

• Unit Weight: 4.63 lbs (Power Unit), 0.24 lbs (Ionizer Bar per 6 section)
• Dimensions: Power Unit - 9.00L x 3.25W x 4.75H inches; Ionizer Bar - 1.6H x 0.75W inches

Technical Specifications

• Input Voltage: 24/120/208-240 VAC
• Output Voltage: 5 kV RMS
• Amps: 0.500A/0.120A/0.065A
• Power Consumption: 12W (standard operation), 15W (cleaning cycle)
• Frequency: 50/60HZ
• Temperature Range: -20°F to 140°F
• Humidity Range: 0-100% RH
• Ion Output: >140M ions/cc per inch of bar
