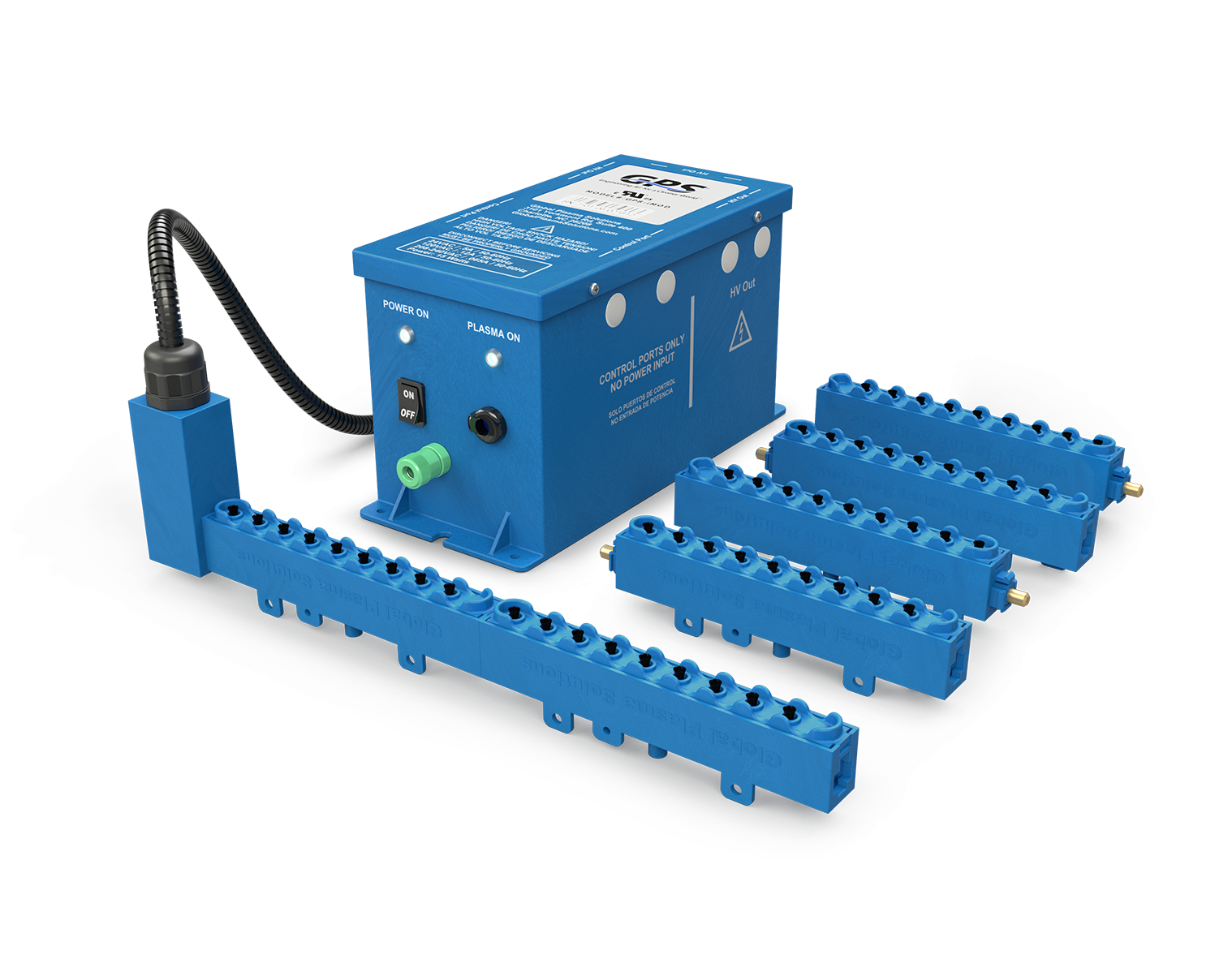

The Global Plasma Solutions GPS-IMOD-60-SNAP is a modular ionization system that focuses on coil cleaning. Using NPBI technology, it generates an abundance of ions to enhance air quality. The system is designed for field assembly, providing flexible coverage in six-inch increments, suitable for various applications.
Modular coil cleaning system for HVAC systems.
Total Ion Output: more than 140 million ions per cubic centimeter per inch of bar.
Adjustable assembly allows for customized configurations.
Product Highlights
This system is essential for maintaining cleaner coils, which can lead to improved system efficiency in HVAC units.
Product Information
Standard Information
Brand: Global Plasma Solutions
Model: GPS-IMOD-60-SNAP
Technical Specifications
Ionizer Total Ion Output
>140 million ions per cc per inch of bar
Power Unit Dimensions
9 inches long × 3.25 inches wide × 4.75 inches high
Power Unit Weight
4.63 lbs
Ionizer Bar Dimensions
1.6 inches high × 0.75 inches wide, Length = 6.0 inches per section + 1.2 inches (144 Max)
Ionizer Bar Weight
0.24 lbs per section
Input Voltage
24/120/208-240 VAC
Output Voltage
5 kV RMS
Output Current
0.500A/0.120A/0.065A
Power Consumption
12W (standard), 15W (cleaning cycle)
Frequency
50/60Hz
Electric Approvals
UL, cUL
Power Entry
UL Listed, Line Cord with 3-Prong Plug
Compliance & Certifications
UL 2998, UL 867, IAQP, OSHPD Seismic (OSP), CE, CARB
