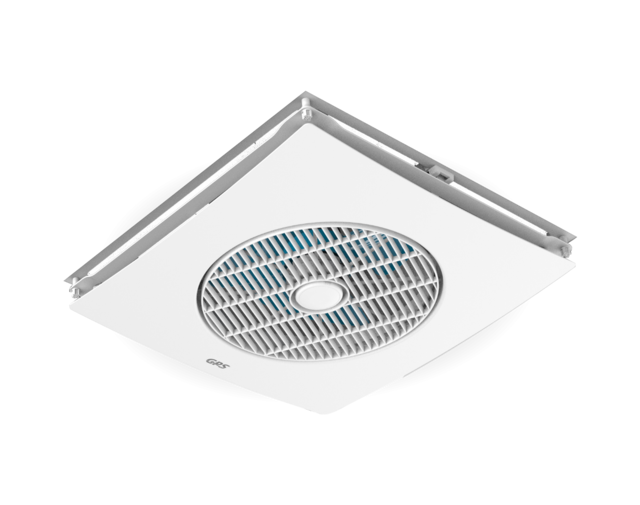

Global Plasma Solutions gps-idf-2 Ion Distribution Fan

Product Description

The GLOBAL PLASMA SOLUTIONS gps-idf-2 is a ceiling-mounted ion distribution fan designed to circulate bipolar ions throughout a conditioned space. Operating at 15 watts and moving 22.5 CFM, the unit draws minimal power while providing continuous ion delivery across a room or zone. At 23.75 inches by 23.75 inches and 7.1 inches tall, it mounts flush to standard ceiling surfaces. HVAC technicians and IAQ specialists install this fan as part of a broader needlepoint bipolar ionization system, where uniform ion distribution is critical to system performance.

The gps-idf-2 is suited for commercial and light commercial applications where an ion generator alone cannot achieve adequate coverage across a large space or irregular room layout. Typical installations include open-plan offices, classrooms, lobbies, and other occupied spaces that require supplemental air circulation to extend ion reach beyond the primary HVAC discharge point. The unit mounts at ceiling level to take advantage of natural airflow patterns and deliver ions at occupant-breathing-zone height.

Key Features

• Low 15-watt power draw for continuous 24/7 operation without significant energy penalty
• 22.5 CFM airflow rated for targeted ion distribution in occupied zones
• Compact 7.1-inch profile allows flush ceiling installation with minimal intrusion
• 23.75 by 23.75 inch footprint fits standard ceiling grid openings
• Designed for use with bipolar ionization systems requiring distributed ion delivery

Compatibility

Designed as an OEM-style accessory distribution fan for ceiling-mounted bipolar ionization system installations requiring supplemental airflow coverage.

Installation Notes

Installation is typically performed by a licensed HVAC technician or qualified IAQ system integrator. Disconnect and lock out all power to the circuit before mounting or wiring the unit. Ensure the ceiling structure can support the 11.5-pound unit weight, and verify that wiring complies with applicable NEC requirements for the installation location. Do not operate the fan without confirming the ion generator system is properly commissioned.

Technical Specifications

• Airflow: 22.5 CFM
• Power Consumption: 15 watts
• Length: 23.75 inches
• Width: 23.75 inches
• Height: 7.1 inches
• Weight: 11.5 pounds

Standard Information

• Brand: GLOBAL PLASMA SOLUTIONS
• Manufacturer Part Number: gps-idf-2
