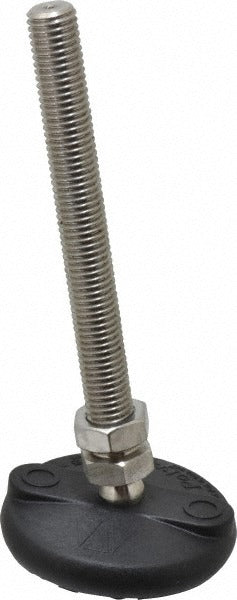

Gibraltar BSNYLC36-EL-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR BSNYLC36-EL-G is a studded pivotal leveling mount designed to support, level, and stabilize industrial equipment, machinery bases, and fabricated frames. It features a 3-inch base diameter with an elastomer pad that absorbs vibration and compensates for minor floor irregularities. The stainless steel stud provides corrosion resistance in wet or chemical environments. Rated at 5,000 lb load capacity, this mount is sized for medium-duty applications and installs using a 5/8-11 bolt thread. Overall length is 7 inches. Millwrights, maintenance technicians, and equipment installers use this type of mount when precise leveling and load isolation are required.

This leveling mount is suited for use in manufacturing facilities, food processing plants, commercial kitchens, mechanical rooms, and other settings where equipment must be anchored and leveled on concrete or steel surfaces. The pivotal design allows the mount to self-align under load, making it appropriate for installations where floor surfaces are not perfectly flat. The elastomer pad reduces transmitted vibration and helps protect flooring from point-load damage. It is commonly installed under compressors, pumps, conveyors, workbenches, and similar industrial equipment.

Key Features

• 5,000 lb static load capacity for medium-duty equipment support
• Pivotal design self-aligns under load to compensate for uneven surfaces
• Elastomer pad absorbs vibration and isolates equipment from floor
• Stainless steel stud resists corrosion in wet or chemically active environments
• 3-inch base diameter distributes load and provides stable footprint
• 5/8-11 bolt thread is a standard size compatible with common industrial hardware

Compatibility

Designed as an OEM-style leveling mount for general industrial equipment applications requiring a 5/8-11 stud thread, 3-inch base diameter, and up to 5,000 lb load capacity per mount point.

Installation Notes

Installation is typically performed by a millwright or maintenance technician using standard hand tools. Equipment should be de-energized and safely blocked before mount replacement or adjustment. The stud threads into the equipment base or a corresponding weld nut; ensure thread engagement meets the equipment manufacturer's minimum requirement before loading. Torque fasteners evenly across all mount points to distribute load uniformly and achieve a level bearing surface.
