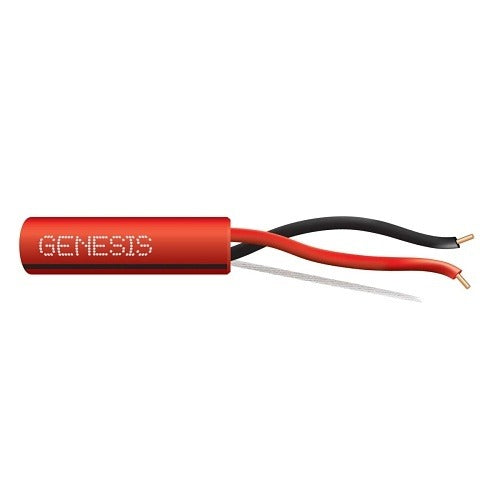

Genesis Cable 4513104K 14/2 Solid Fplp Fire Alarm Cable

Product Description

The GENESIS CABLE 4513104K is a 14 AWG, 2-conductor solid FPLP-rated fire alarm cable supplied on a 1,000-foot reel in a red and black color configuration. FPLP designation indicates a plenum-rated jacket, making this cable suitable for installation in air-handling spaces where low-smoke and flame-spread performance is required by code. It is used in initiating device circuits, notification appliance circuits, and signaling line circuits in fire alarm systems. Licensed fire alarm installers and low-voltage electricians are the primary trades handling this product.

This cable is intended for use in commercial and residential fire alarm system installations where plenum-rated wiring is specified. The solid 14 AWG conductors support longer runs with lower voltage drop, making it appropriate for larger buildings or extended circuit runs. The red and black conductor identification aids polarity management during termination. The 1,000-foot reel format is suited to new construction and major retrofit projects where larger quantities are pulled at once.

Key Features

• FPLP plenum rating meets low-smoke, flame-spread requirements for air-handling spaces
• 14 AWG solid conductors support extended circuit runs with reduced voltage drop
• 2-conductor configuration with red and black color coding for polarity identification
• 1,000-foot reel format reduces mid-run splices on large installations
• Unshielded construction appropriate for standard fire alarm signaling circuits

Compatibility

Designed as an OEM-style fire alarm cable for use in FPLP-rated plenum applications within conventional and addressable fire alarm systems requiring 14 AWG 2-conductor solid unshielded wiring.

Installation Notes

Installation must be performed by a licensed fire alarm technician or low-voltage electrician in accordance with NFPA 72 and applicable local codes. De-energize the fire alarm control panel and follow lockout/tagout procedures before making any wiring connections. Plenum-rated cable must be routed through plenum air-handling spaces as required by NFPA 90A and the NEC Article 760. Do not substitute this cable in non-plenum pathways where a different jacket rating is specified by the system designer.
