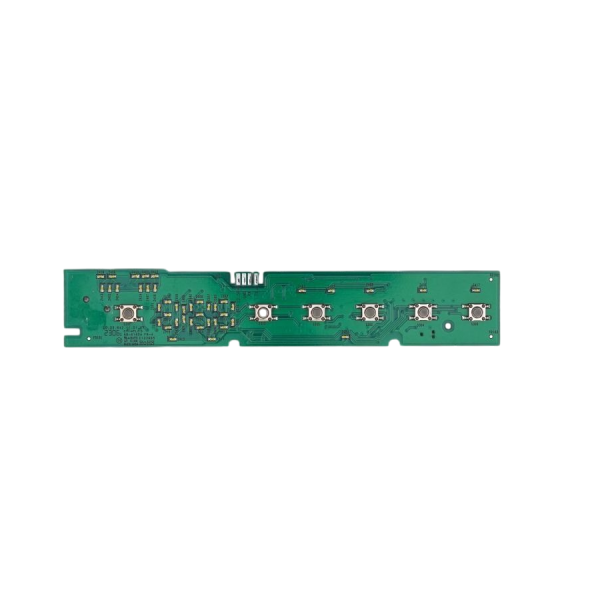

General Electric wd21x33544 User Interface Control Board

Product Description

The General Electric wd21x33544 is a configured user interface control board designed as a genuine OEM replacement part for GE dishwashers. This board serves as the primary input and display interface between the operator and the dishwasher control system. It processes cycle selections, option inputs, and status feedback, communicating with the main control board to execute wash programs. Installation is typically performed by appliance service technicians or licensed plumbers handling built-in dishwasher service. As a factory-configured OEM component, it is matched to the specific electrical and software parameters of the unit it is designed for.

This user interface control board is intended for residential dishwasher applications. It mounts at the door panel and connects to the main control assembly via low-voltage wiring harness. The configured designation indicates the board ships pre-programmed for its target application, eliminating field programming steps. Typical installation scenarios include control panel failure diagnosis, unresponsive touchpad replacement, and full interface board swap-outs during dishwasher service calls.

Key Features

• Genuine OEM part manufactured by General Electric to factory specifications
• Pre-configured from the factory, no field programming required
• Serves as the primary operator input and status display interface
• Designed for direct drop-in replacement in compatible GE dishwasher models
• Interfaces with the main control board via low-voltage wiring harness

Compatibility

Designed as a genuine OEM-style replacement user interface control board for compatible GE residential dishwasher models. No specific model compatibility data was provided in the product listing; verify fitment against the unit model number before installation.

Installation Notes

Disconnect power to the dishwasher at the circuit breaker before beginning any control board service. This work is typically performed by qualified appliance technicians or licensed plumbers familiar with built-in dishwasher electrical systems. Carefully document or photograph existing wiring harness connections before removal to ensure correct reassembly. Do not force connectors during installation, as damaged pins on a pre-configured board may require full unit replacement.

Technical Specifications

• Component Type: User Interface Control Board
• OEM Status: Genuine OEM Replacement
• Configuration: Pre-configured

Standard Information

• Brand: General Electric
• Manufacturer Part Number: wd21x33544
