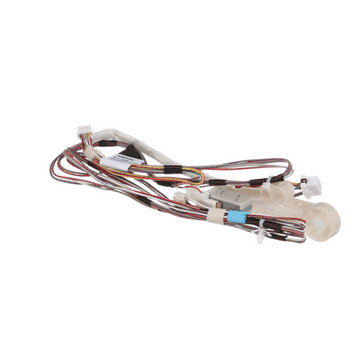

General Electric wd21x26122 Wire Harness Assembly

Product Description

The General Electric wd21x26122 is an OEM-style wire harness assembly designed to restore electrical continuity in GE dishwashers. Wire harness assemblies route and protect the low-voltage signal and power wiring that connects the control board to motors, door switches, sensors, and dispenser solenoids. When a harness develops a break, burned connector, or intermittent fault, components lose communication and the appliance fails to cycle correctly. This replacement part is manufactured to OEM specifications, ensuring connector housings, terminal types, and wire gauges match the original assembly for a direct-fit installation.

This wire harness assembly is intended for use in GE dishwasher units where the original harness has failed due to heat exposure, mechanical stress, or age-related insulation breakdown. Installation is typically performed during a control board swap, motor replacement, or as a standalone repair when diagnostic testing isolates a wiring fault. Appliance repair technicians and qualified DIYers with electrical troubleshooting experience are the primary installers.

Key Features

• OEM-specification replacement ensures direct connector and terminal compatibility
• Restores electrical continuity between the control board and downstream components
• Designed to withstand the heat and moisture environment inside a dishwasher cabinet
• Supports accurate diagnostic repair by replacing the harness as a complete assembly

Compatibility

Designed as an OEM-style replacement wire harness assembly for GE dishwasher models. Consult the appliance model and serial number against GE parts documentation to confirm fitment before installation.

Installation Notes

Disconnect power to the dishwasher at the circuit breaker and confirm voltage is absent before accessing the wiring harness. Appliance repair technicians should document connector routing and orientation with photographs before removing the original harness. Connectors should be seated firmly until the locking tab clicks; do not force mismatched connectors. Restore power only after all connectors are fully seated and the access panel is reinstalled.

Technical Specifications

• Part Type: Wire Harness Assembly
• Application: Dishwasher

Standard Information

• Brand: General Electric
• Manufacturer Part Number: wd21x26122
