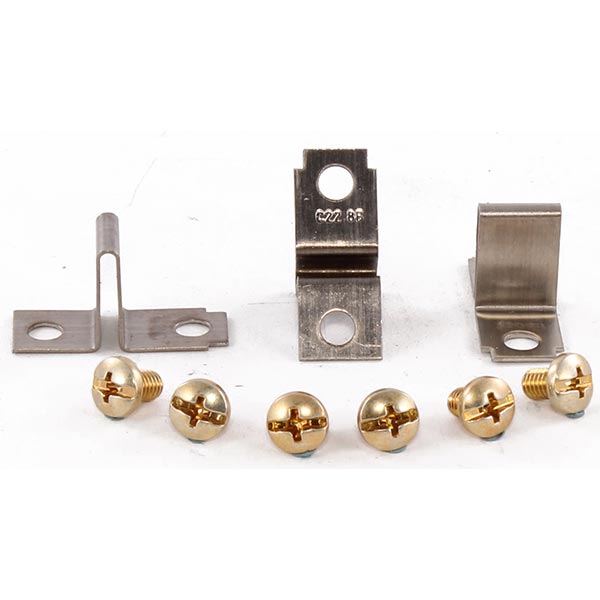

General Electric CR123C228B 3-Phase Overload Relay Heater 24.9 A

Product Description

The General Electric CR123C228B is a 3-phase overload relay heater with an amperage rating of twenty-four point nine amps. Designed for use with various General Electric full voltage starters including CR1062R, CR1062S, CR123C, CR123F, CR340, and CR341, this heater ensures efficient operation in electrical distribution and control applications. With compliance to manufacturing standards such as ARRA and RoHS, it is suitable for reliable performance in various situations.

• Designed for use with CR1062R, CR1062S, CR123C, CR123F, CR340 and CR341 full voltage starters
• Amperage rating of twenty-four point nine A
• Compact size: one and a half inches long by three quarters of an inch wide by one and a quarter inches high

Product Highlights

This overload relay heater is essential for protecting electrical equipment from overloading, ensuring long-lasting performance and safety for electrical systems.

Product Information

Standard Information

• Brand: General Electric
• Part Number: N1694

Technical Specifications

• Amperage Rating: 24.9 A
• Application: Electrical Distribution and Control Applications
• Country of Origin: UU
• Enclosure Type: NEMA M-0/M-1
• Manufacturing Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant
• Package Height: 1.25 in
• Package Length: 1.5 in
• Package Width: 0.75 in
• Package Weight: 0.01 lb
• Series: CR123C
• Size: 1.5 in L x 0.75 in W x 1.25 in H
• Trip Type: Class 20/Standard
• Type: 3-Phase
