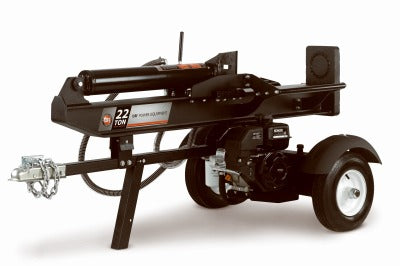

Generac WH23022DMN 22-ton Log Splitter Towable

Product Description

The Generac WH23022DMN is a 22-ton horizontal and vertical log splitter built for demanding splitting work on residential and light commercial properties. It runs on a 9.59 FPT engine paired with a 2-stage pump delivering 6.3 gallons per minute and generating up to 3,400 psi of splitting force. A 16-second cycle time keeps throughput high during extended splitting sessions. The unit is towable, making it practical for crews moving between job sites or property owners working across large lots. Licensed arborists, landscaping professionals, and property maintenance crews are the primary operators of this class of equipment.

This splitter handles logs up to 30 inches in diameter and up to 25 inches in length, covering the range of material common in residential tree removal and storm cleanup work. The dual horizontal and vertical operating positions allow the operator to work with heavy rounds at ground level in horizontal mode or shift to vertical for larger, upright pieces without repositioning the machine. It is suited to operations where both log volume and log size vary throughout the workday.

Key Features

• 22-ton splitting force rated for large-diameter hardwood and softwood rounds
• 9.59 FPT engine powers a 2-stage pump at 6.3 GPM for consistent hydraulic output
• 3,400 psi hydraulic pressure for reliable splitting force through dense grain
• 16-second cycle time supports high-volume splitting without long wait times between strokes
• Handles logs up to 30 inches in diameter and up to 25 inches in length
• Towable design allows transport between sites without a separate trailer setup
• Horizontal and vertical operating modes for versatility across log sizes and weights

Compatibility

Designed as an OEM log splitter unit sold under the Generac brand. No specific replacement part or model family compatibility was provided in the product data.

Installation Notes

Setup and operation should be performed by qualified personnel familiar with hydraulic log splitting equipment and applicable local safety codes. Before servicing or adjusting hydraulic components, shut down the engine and relieve all hydraulic pressure per the manufacturer service procedure. Towing connections should be inspected and secured to rated hitch equipment before road transport. Keep bystanders clear of the splitting zone during operation.

Technical Specifications

• Splitting Force: 22 tons
• Hydraulic Pressure: 3,400 psi
• Pump Flow Rate: 6.3 GPM
• Pump Type: 2-Stage
• Engine Displacement: 9.59 FPT
• Cycle Time: 16 seconds
• Maximum Log Diameter: 30 inches
• Maximum Log Length: 25 inches
• Operating Positions: Horizontal and Vertical
• Towable: Yes
• Weight: 474 pounds
• Package Quantity: 1

Standard Information

• Brand: Generac Power Systems
• Manufacturer Part Number: WH23022DMN
