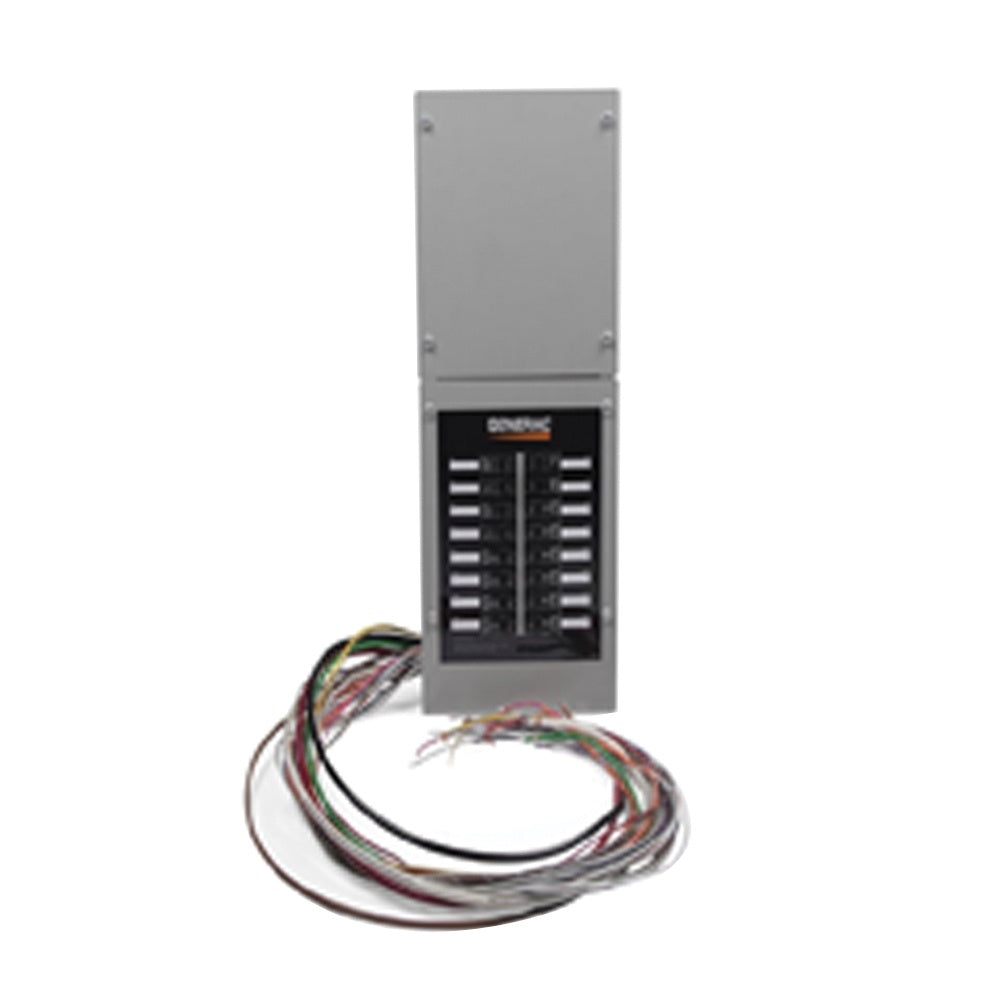

Generac RXG16EZA1W Automatic Per-Wired Transfer Switch 120/240-Volt AC 100-Amp

Product Description

The Generac RXG16EZA1W is an automatic per-wired transfer switch suitable for use with air-cooled generators ranging from eight to seventeen kilowatts. This transfer switch integrates a load center for managing emergency circuits. It is ideal for installations where the main service is large and the generator will supply only part of the electrical load. Various circuit load center configurations, including ten, twelve, fourteen, or sixteen circuits, ensure that essential circuits receive power during an outage.

• Integrated load center for efficient emergency circuit management.
• Multiple circuit configurations to meet specific needs.
• Compliant with CUL Listing for optional standby systems (NEC702).

Product Highlights

Designed for reliability, all components are housed in a steel NEMA 1 enclosure, ensuring protection and durability.

Product Information

Standard Information

• Brand: Generac
• Manufacturer Part Number: RXG16EZA1W

Technical Specifications

• Voltage Rating: 120/240 Volt AC
• Amperage Rating: 100 Amp
• Material: Steel
• Enclosure: NEMA 1
• Frequency Rating: 60 Hz
• Size: 12.6 Inch Width x 6.3 Inch Depth x 26.4 Inch Height
• Model Type: Automatic Per-Wired
• UNSPSC: 39122200
