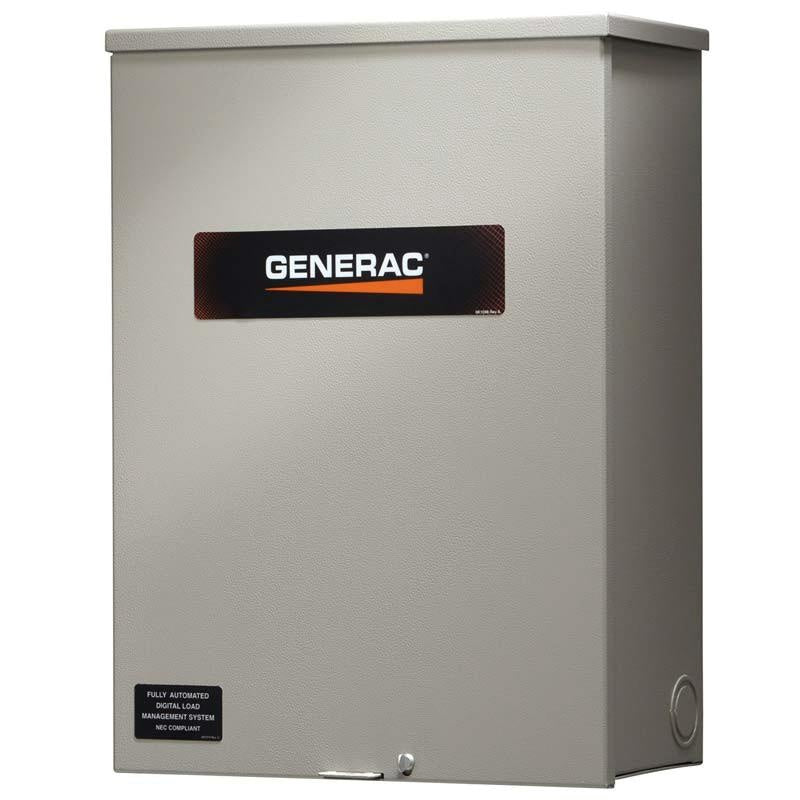

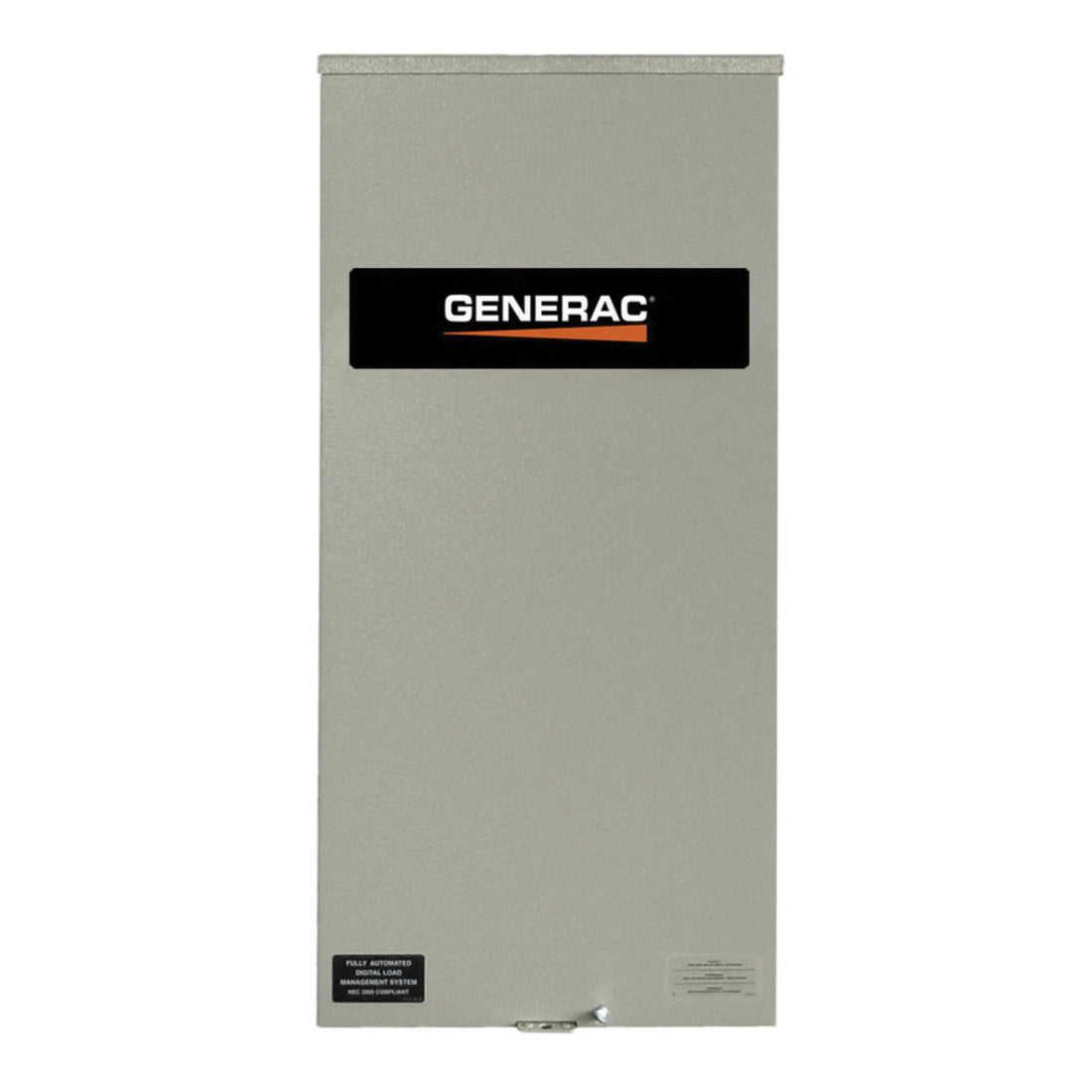

Generac RTSW400A3 Automatic Transfer Switch 400-Amp 120/240 VAC NEMA 3R

Product Description

The Generac RTSW400A3 is a 400-Amp automatic transfer switch designed for 120/240 VAC systems. It is ideal for managing power seamlessly in residential or light commercial applications. This switch allows for automatic operation with Generac generators, ensuring reliable power during outages.

• Service Entrance Rated for direct installation between the main meter and service panel.
• NEMA 3R rated enclosure for indoor and outdoor use.
• Digital Power Management Technology for energy efficiency.

Product Highlights

This automatic transfer switch features robust construction with an aluminum enclosure and a heavy-duty Generac contactor, ensuring long-lasting performance.

Product Information

Standard Information

• Brand: Generac
• MPN: RTSW400A3
• Power Rating: 96 kW
• Phase: 1
• Enclosure Type: NEMA 3R

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 400 A
• Dimensions: 21.82 inches (Width) x 10.06 inches (Depth) x 48 inches (Height)
• Material: Aluminum
• Withstand Rating: 22,000 Amps
• Weight: 140 lbs
• Warranty: 5 years
