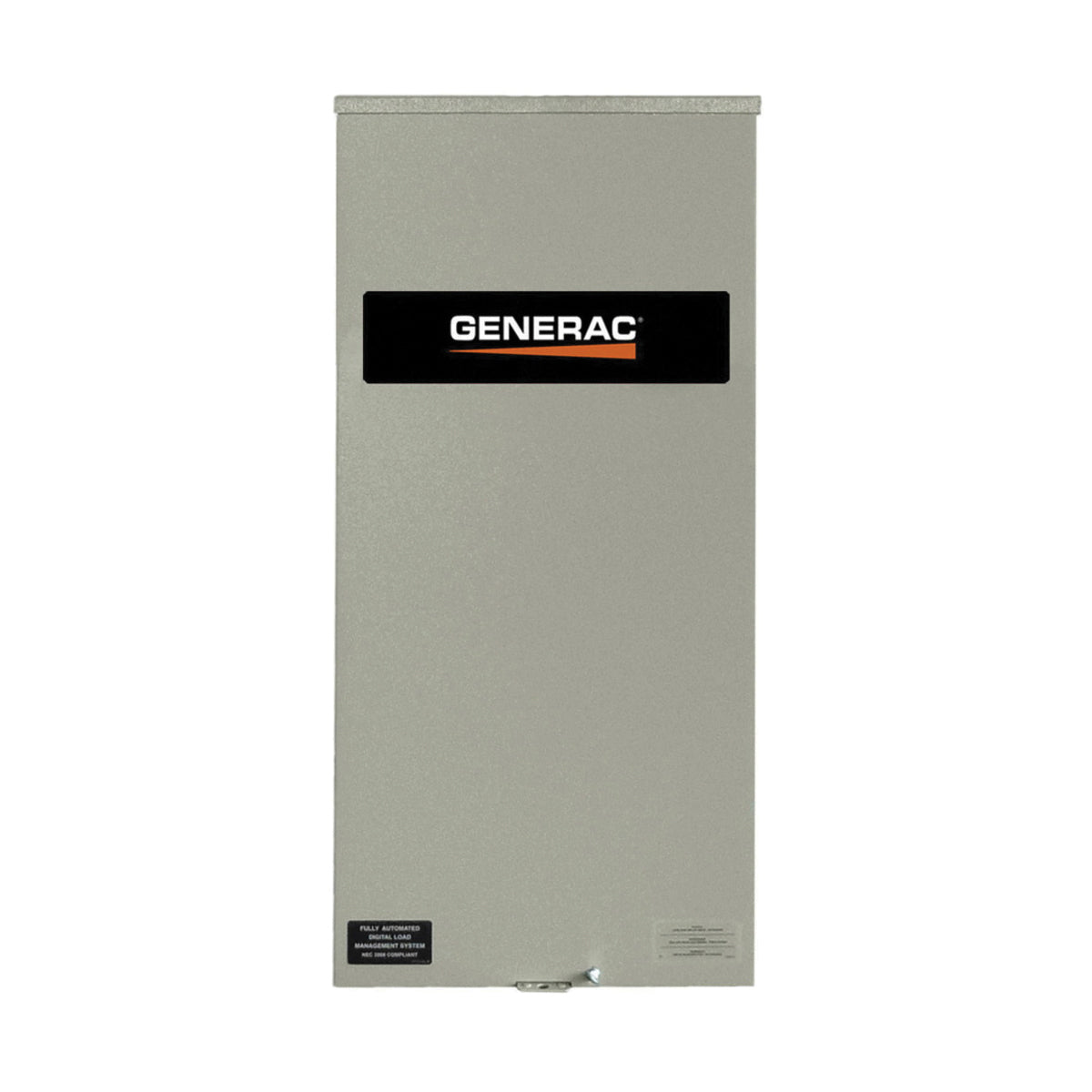

Generac RTSW300A3 Automatic Smart Transfer Switch w/ Power Management (300 Amp)

Product Description

The Generac RTSW300A3 is a 300-amp automatic smart transfer switch designed for use with Generac Evolution and Nexus controllers. This switch utilizes digital power management technology to optimize generator performance. It can manage up to four individual HVAC loads without additional hardware, making it suitable for homes with multiple air conditioning units.

• Compatible with Generac generators
• Service rated with NEMA 3R enclosure
• 5-year limited warranty

Product Highlights

This transfer switch features a weatherproof aluminum enclosure, electrostatically applied powder-coated paint for durability, and a high withstand rating of 22,000 amps.

Product Information

Standard Information

• Brand: Generac
• MPN: RTSW300A3

Technical Specifications

• Voltage Rating: 120/240 V
• Amperage Rating: 300 A
• Enclosure: NEMA 3R
• Power Rating: 72,000 W
• Transfer Switch Style: Service Disconnect
• Dimensions: 25 inches (width) x 17 inches (depth) x 52 inches (height)
• Weight: 140 lbs
• Standards/Approvals: UL Listed
