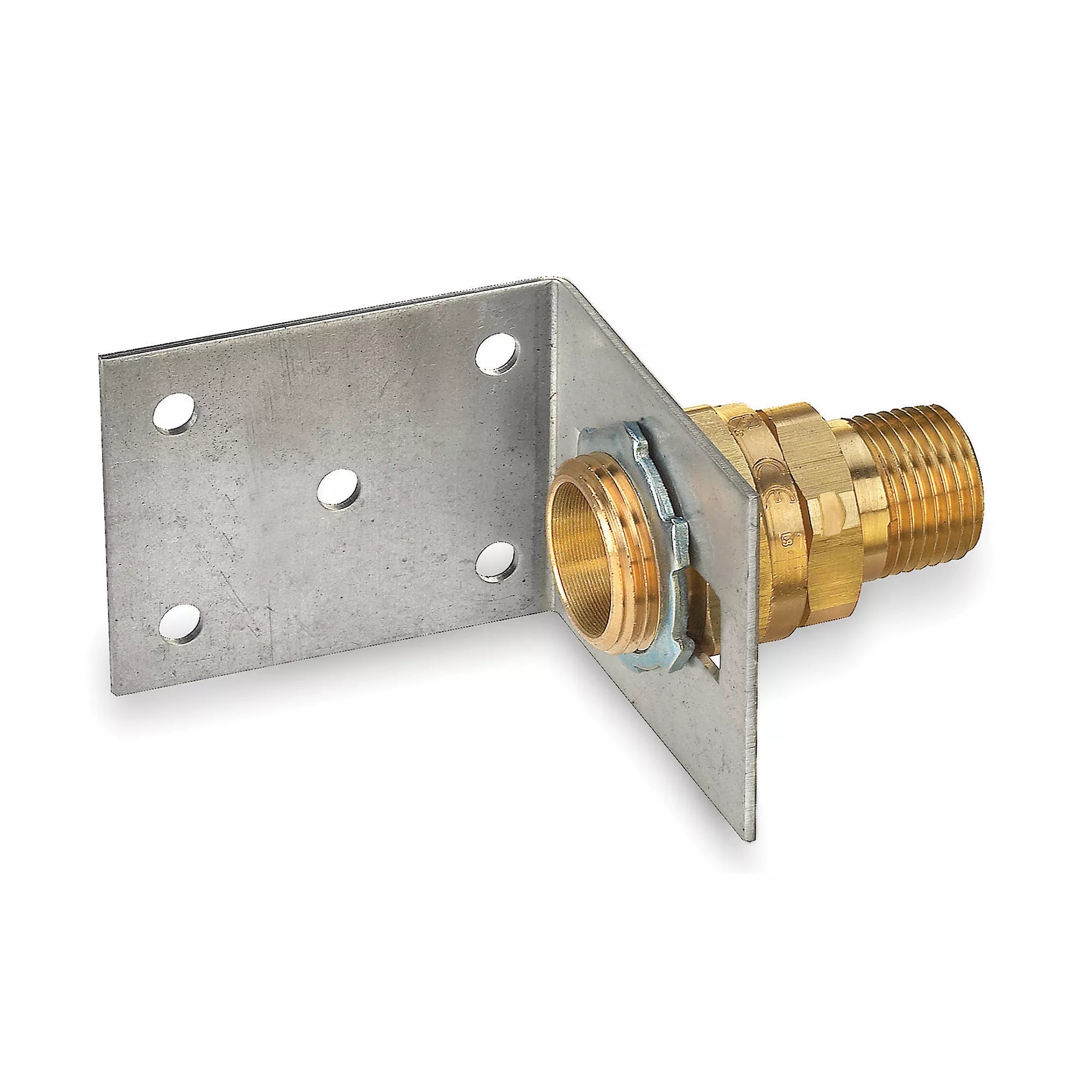

Gastite XR3TRMBKT-11-12 Termination Bracket Fitting 3/4 Inch NPT

Product Description

Gastite model XR3TRMBKT-11-12 is a 3/4 inch NPT termination bracket fitting, crafted from high-grade brass with a mechanical connection type. This fitting is specifically designed for setup in gas pipe systems, providing a secure point for stub-outs on walls or floors.

• Patented design ensures electrical continuity across assemblies.
• No special tools required for installation due to the tool-less flare design.
• Metal-to-metal seal enhances system integrity and durability.

Product Highlights

This Gastite termination fitting is notable for its patented Jacket-Lock system which prevents the exposure of stainless steel beyond the nut, enhancing system safety and longevity. The fitting components are all reusable, supporting varied assembly and reassembly processes.

Standard Information

Technical Specifications

• Material: Brass adapter, bushings, and nut; steel square flange with zinc coating.
• Pressure Rating: 25 PSI maximum operating pressure.
• Connection Size: 3/4 inch NPT.
• Durability: Tool-less flare design, metal-to-metal seal with no need for o-rings or gaskets.
• Safety Codes: Conforms to CSA ANSI LC 1, IAPMO, and ICC PMG 1019 standards.
