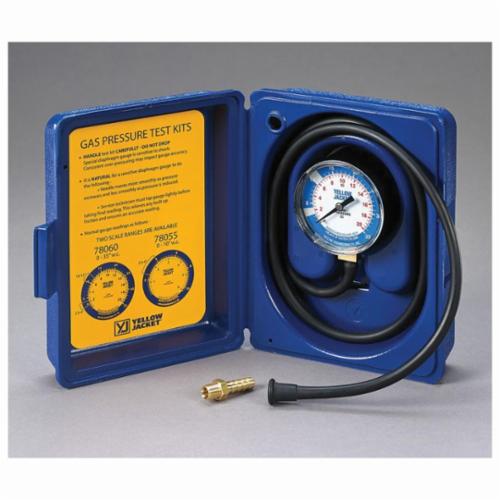

Yellow Jacket 78060 Gas Pressure Test Kit 0-35 WC

Product Description

The Yellow Jacket 78060 Gas Pressure Test Kit helps set manifold pressure for natural or L.P. gas. This compact kit is easier to use than a manometer and comes with a sensitive diaphragm gauge. The gauge is calibrated in inches of water column and ounces per square inch and features improved lamination strength for higher over-pressure resistance. The included tube nipple offers easy connection to system manifold.

• Manifold pressure setting for natural or LP gas
• Easier to use than a manometer
• Compact kit design

Product Highlights

The Yellow Jacket 78060 Gas Pressure Test Kit includes a 36-inch tubing, a brass barb fitting, and a carrying case.

Product Information

Standard Information

• Brand: Yellow Jacket
• MPN: 78060
• Manufacturer: Ritchie Engineering
• Country of Origin: United States

Technical Specifications

• Range: 0 to 35 in WC
• Slack Tube Length: 36 inches
• Hose Inside Diameter: 1/4 inch
• Max Working Temperature: 120 degrees Fahrenheit
• Max Vacuum: 1 inch Hg
• Gauge Case Material: Steel
• Lens Material: Polycarbonate
• Pressure Range Type: Pressure
