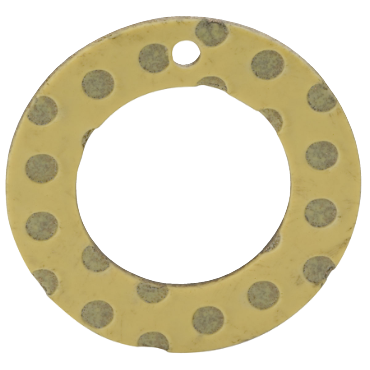

Garlock G10DXR Low Maintenance DXR Thrust Washer

Product Description

The Garlock G10DXR is a low maintenance DXR thrust washer designed to enhance operational efficiency in various mechanical applications. This thrust washer provides effective lubrication with minimal maintenance requirements. Its design is tailored for continuous use in demanding environments.

• Requires minimal lubrication to function effectively
• Steel-backed construction for added strength
• Compatible with multiple lubrication types including grease and oil

Product Highlights

Ideal for oscillating and thrust loading applications, the G10DXR offers consistent performance across several conditions.

Product Information

Standard Information

• Brand: Garlock Bearings LLC
• Part Number: 101988925

Technical Specifications

• Inner Diameter: 0.75 inches
• Outer Diameter: 1.25 inches
• Thickness: 0.066 inches
• Material: POM
• Max Dynamic Pressure: 10,000 psi
• Max Static Pressure: 20,000 psi
• Temperature Range: -40 °F to 210 °F
• Lubrication: Low maintenance
• Dowel Hole Diameter: 0.099 inches
• Housing Recess Depth: 0.04 inches
• Pitch Circle Diameter: 0.995 inches
• Weight: 0.01 LB
• EAN or UPC: 13992721037
