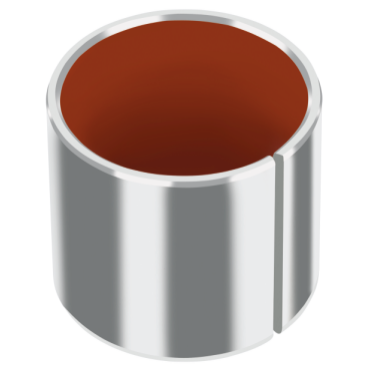

Garlock 14DP412 DP4 Bushing

Product Description

The Garlock 14DP412 is designed for use as a DP4 bushing. This product provides effective wear resistance and operates well under a wide range of loads and speeds. The self-lubricating capability aids in maintaining low friction, making it suitable for various applications.

• Inner Diameter: 0.875 inches
• Outer Diameter: 1 inch
• Length: 0.75 inches

Product Highlights

This bushing supports linear, oscillating, and rotating movements while complying with environmental standards.

Product Information

Standard Information

• Brand: Garlock Bearings LLC
• Part Number: 105431647

Technical Specifications

• Inner Diameter: 0.875 inches
• Outer Diameter: 1 inch
• Length: 0.75 inches
• Material: PTFE Based Metal Polymer
• Max Temperature: 280 °F
• Min Temperature: -200 °F
• Max Dynamic Pressure: 20,000 psi
• Max Static Pressure: 36,000 psi
