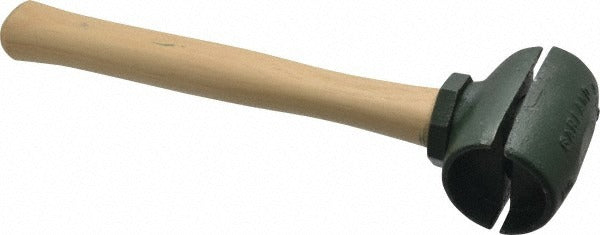

Garland 35003 Non-marring Split Head Hammer 40 Oz

Product Description

The GARLAND 35003 is a split head non-marring hammer designed for striking applications where surface protection is critical. The malleable iron head accepts replaceable faces, allowing the tool to be rebuilt rather than replaced when faces wear out. At 40 oz head weight, it delivers substantial impact force while the natural, solid hickory wood handle provides grip and vibration absorption. The head measures 3-3/4 inches in length with a 2-3/4 inch head diameter and a 1-3/4 inch fractional face diameter. Installed by tradespeople across HVAC, plumbing, electrical, and general mechanical work where marring a finished surface is not acceptable.

This hammer is suited for assembly and disassembly tasks in residential and light commercial service work. The split head design with expandable wedge and roll pin construction keeps the head secured during use. It is a practical choice when working around soft metals, finished panels, or delicate fittings that would be damaged by a steel-faced hammer. The replaceable face feature extends the service life of the tool significantly compared to fixed-face hammers.

Key Features

• Replaceable face design — rebuild the head instead of replacing the entire tool
• Malleable iron head construction for durability under repeated impact
• Natural, solid hickory wood handle, 12-3/4 inches in length
• Expanded wedge, nut, and roll pin retention system secures head to handle
• Upper and lower jaw design for split head face replacement
• 40 oz head weight delivers high impact force for heavy-duty mechanical work

Compatibility

Designed as an OEM-style replacement and standard service tool for general trade use; accepts standard replaceable faces compatible with split head hammer assemblies of the 1-3/4 inch face diameter class.

Installation Notes

Installation of replacement faces should be performed with the handle secured and the head assembly disassembled per standard split head hammer procedures. Ensure the expanded wedge and roll pin are fully seated before returning the hammer to service. Inspect the hickory handle periodically for cracks or looseness and replace if any structural compromise is found. No power source or lockout procedure is required for hand tool service.
