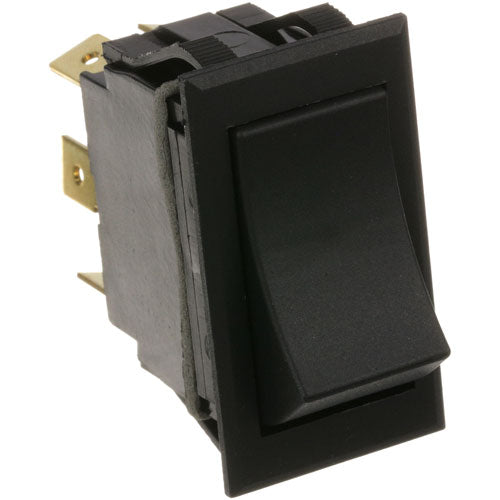

3 Position Switch 7/8 X 1-1/2 DPDT 228264-1 for Garland 228264-1

Product Description

This item for Garland MPN 228264-1 is a three-position switch designed for use in various applications. The switch measures seven-eighths inch by one and a half inches and features a double-pole double-throw (DPDT) configuration.

• Fits hole size seven-eighths inch by one and a half inches
• Rated for three-quarter horsepower and fifteen amps
• Operational voltage of one hundred twenty-five to two hundred seventy-seven volts

Product Highlights

This sealed switch is ideal for use in US range oven series Performer II. It accommodates six quarter-inch tab terminals and is the new style switch, which differs from the old style that had red and amber colors.

Product Information

Standard Information

• Type: Three Position Rocker
• Not Lighted: Yes

Technical Specifications

• MPN: 228264-1
• Weight: 0.05 lb
• Length: 1.875 inches
• Width: 1.75 inches
• Height: 0.9375 inches
• Switch Type: DPDT
• Max Voltage: 277V
• Terminal Type: 1/4 Tab
