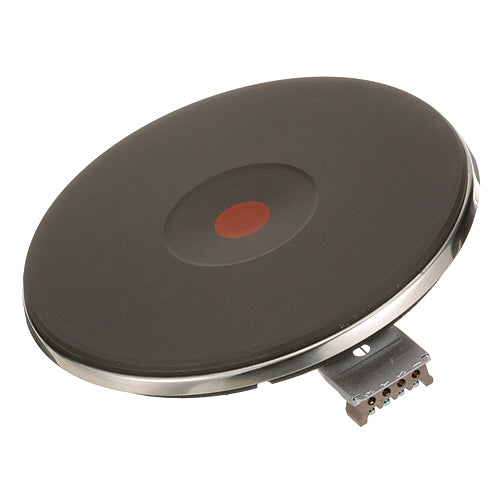

Surface Heater 240V 2600W 9 Dia. for Garland 2147102

Product Description

This item for Garland MPN 2147102 is a surface heater designed to operate at two hundred forty volts and a power output of two thousand six hundred watts. The diameter is nine inches, suitable for various cooking applications.

• Solid top heater for effective cooking.
• Fits an eight and three-fourths inch hole.
• Compatible with multiple range top units.

Product Highlights

This surface heater features a centered mounting stud and offset pins for secure installation.

Product Information

Standard Information

• Product Notes: Solid top surface heater, French plate; 240V 2600W; fits 8-3/4 hole.
• Hazardous: False

Technical Specifications

• Weight: 8.1 lbs
• Length: 9 inches
• Width: 9 inches
• Height: 2 inches
• Dim Weight: 11.34 lbs
• Terminals: 4 each pin with screw
• Mounting Thread: 1/4-20 threads
• Compatible Models: Hobart solid range top units, Toastmaster solid range top, Vulcan range E24L, E36L, E48L, E60L, VR3C, VR4C, VR6C, VR7C; Wells hot plate 501FD, 501FF, 502FA, 502FD, 502FF, 502FZ
