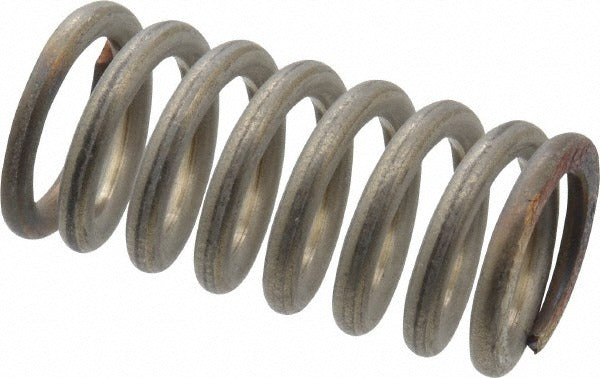

Gardner Spring 36575GS Precision Compression Spring

Product Description

The GARDNER SPRING 36575GS is a precision compression spring manufactured from stainless steel to AISI 302 and ASTM A313 standards. It features a 0.72 inch outside diameter, a 1.5 inch free length, and a 0.1051 inch wire diameter. The spring delivers a rated spring rate of 123.11 pounds per inch with a maximum work load of 96 pounds. Closed and ground ends provide stable seating and consistent load distribution across cycles. This spring is suited for mechanical assemblies, industrial equipment, and precision devices where repeatable compression force and corrosion resistance are required. Installation is typically performed by mechanical assemblers, maintenance technicians, or OEM production staff.

This compression spring fits into a hole diameter of 0.75 inches and compresses to a solid height of 0.8150 inches. It is appropriate for use in precision mechanical, industrial, and commercial applications where stainless steel construction is specified for corrosion resistance or cleanliness requirements. The plain silver finish requires no additional surface treatment. Sold in a package quantity of 5 with a minimum order quantity of 1 package.

Key Features

• Precision spring type with closed and ground ends for accurate load transfer and flat seating
• Stainless steel construction meets AISI 302, ASTM A228, and ASTM A313 standards
• 0.72 inch outside diameter fits into a 0.75 inch hole diameter
• Maximum work load of 96 pounds with a spring rate of 123.11 pounds per inch
• Solid height of 0.8150 inches limits over-compression in confined assemblies
• Plain silver finish requires no coating or post-processing

Compatibility

Designed as an OEM-style precision compression spring for mechanical assemblies requiring a 0.72 inch outside diameter, 1.5 inch free length stainless steel compression spring.

Installation Notes

Installation is performed by mechanical technicians or assemblers working with precision spring components. Ensure the mating hole diameter accommodates the 0.75 inch specified bore clearance and that the spring seat is flat and clean to maintain consistent load performance. Do not compress the spring beyond its solid height of 0.8150 inches during assembly or operation. Inspect the surrounding assembly for burrs or edges that could damage the spring wire over repeated cycles.
