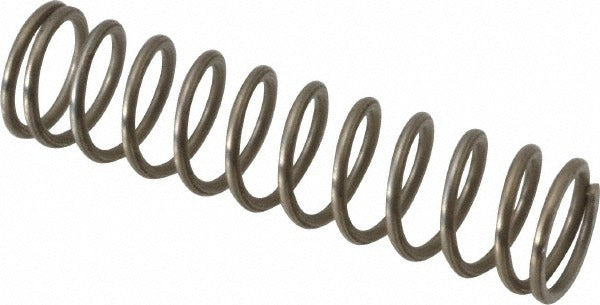

Gardner Spring 36368GS Compression Spring 0.3in Od Ss

Product Description

The GARDNER SPRING 36368GS is a precision compression spring manufactured from stainless steel for reliable, corrosion-resistant performance across a wide range of mechanical and industrial applications. The spring measures 0.3 inches in outside diameter with a free length of 1.25 inches and a wire diameter of 0.0319 inches. It carries a maximum work load of 7 pounds and a spring rate of 7.48 pounds per inch, making it well-suited for light-duty actuation, return, and clamping functions. The closed and ground end type provides flat seating surfaces for consistent load transfer and stable operation. Licensed tradespeople and assembly technicians working on mechanical assemblies, HVAC components, valves, and similar equipment are the primary installers.

This compression spring fits applications in both residential and light commercial environments where a compact, small-diameter spring is required. Typical uses include valve actuators, control linkages, door hardware, pump components, plumbing trim mechanisms, and general mechanical assemblies that require a controlled return force. Its silver plain finish and stainless steel construction make it appropriate for environments with exposure to moisture or mild corrosives. The 0.3000-inch outside diameter and 0.313-inch recommended hole diameter allow drop-in fitment in standard machined housings and bores designed for this spring class.

Key Features

• Stainless steel construction meets AISI 302 and ASTM A313 material standards for corrosion resistance
• Closed and ground ends provide flat, stable seating for consistent axial load transfer
• 7-pound maximum work load with a 7.48 pounds-per-inch spring rate for predictable deflection
• 0.3000-inch outside diameter fits 0.313-inch hole diameter housings
• Solid height of 0.383 inches limits over-compression in tightly toleranced assemblies
• Precision spring type ensures tight dimensional and load tolerances for repeatable performance

Compatibility

Designed as an OEM-style precision compression spring for mechanical assemblies, valve components, and control linkages requiring a 0.3-inch outside diameter with closed and ground ends.

Installation Notes

Installation is performed by mechanical assemblers, HVAC technicians, or plumbing professionals depending on the end application. Always de-energize or depressurize the host system before servicing spring-loaded components. Verify the housing bore diameter and pocket depth against the spring's outside diameter and free length before installation. Do not compress the spring beyond its solid height of 0.383 inches, as permanent set or damage may result.
