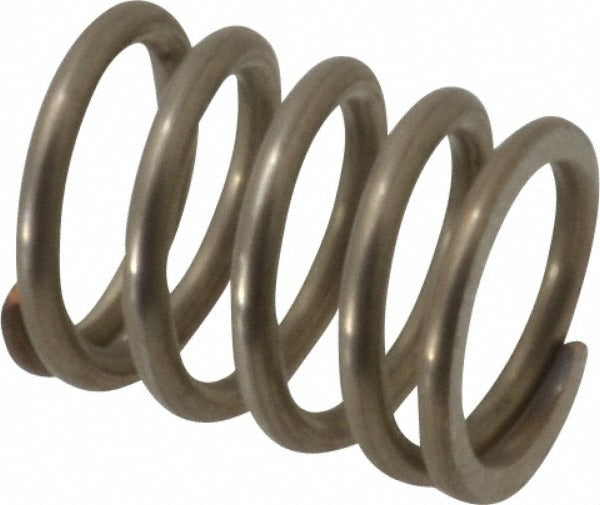

Gardner Spring 36111GS Precision Compression Spring

Product Description

The GARDNER SPRING 36111GS is a precision compression spring manufactured from stainless steel and intended for use in mechanical assemblies, industrial equipment, and other applications requiring reliable load resistance in a compact form. This spring features a 0.6-inch outside diameter, a free length of 0.75 inches, and a wire diameter of 0.072 inches. It delivers a maximum work load of 26.09 pounds and a spring rate of 67.83 pounds per inch. The closed and ground end type ensures consistent seating and accurate load transfer. Licensed technicians, maintenance professionals, and mechanical engineers working with precision hardware will find this spring suited to demanding service conditions.

This compression spring is appropriate for use in residential and commercial mechanical systems where a compact, high-load spring is required. Its small form factor and stainless steel construction make it a reliable choice for environments subject to moisture, mild corrosion exposure, or temperature variation. The spring fits into a hole diameter of 0.625 inches and is packaged in quantities of five per unit, supporting both single-repair and small batch service needs.

Key Features

• Stainless steel construction meets AISI 302, ASTM A228, and ASTM A313 standards
• Closed and ground ends for accurate load application and consistent seating
• Spring rate of 67.83 pounds per inch for predictable deflection performance
• Maximum work load of 26.09 pounds within a 0.75-inch free length
• Plain silver finish with no coating that could affect dimensional tolerances
• Sold in packs of five to support small-quantity replacement and inventory stocking

Compatibility

Designed as a precision compression spring replacement for mechanical assemblies requiring a 0.6-inch outside diameter, 0.75-inch free length, and 0.072-inch wire diameter with closed and ground ends.

Installation Notes

Installation should be performed by qualified mechanical or maintenance technicians familiar with spring-loaded assemblies. Before servicing, de-energize any powered equipment and relieve all stored mechanical energy in the assembly. Verify that the mating hole diameter, bore depth, and load requirements match the spring specifications before installation. Do not compress the spring beyond its solid height of 0.397 inches during assembly or testing.
