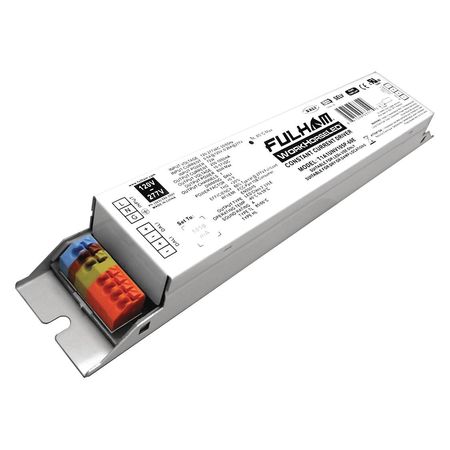

Fulham T1M1UNV105P-60E WorkHorseLED Constant Current Dimmable Electronic High Efficiency Programmable Single Channel LED Driver

Product Description

The Fulham T1M1UNV105P-60E is a constant current dimmable electronic driver designed for LED applications. This high-efficiency single channel driver operates within a wide voltage range of one hundred twenty to two hundred seventy-seven VAC. It accommodates various commercial and residential settings, delivering reliable performance.

• 0 to 10 VDC dimming capability
• Input current of 0.6 A at one hundred twenty VAC and 0.26 A at two hundred seventy-seven VAC
• Linear case with end terminals for easier installation

Product Highlights

This driver supports dimming and is suitable for many lighting applications, ensuring energy efficiency and flexibility.

Product Information

Standard Information

• Brand: Fulham
• Part #: Q9511

Technical Specifications

• Type: Constant Current Dimmable Electronic High Efficiency Programmable Single Channel
• Amperage Rating: 0.26/0.6 A
• Input Voltage: 120 to 277 VAC
• Output Voltage: 10 to 57 VDC
• Power Rating: 60 W
• Width: 1.6 in
• Height: 1.18 in
• Length: 9.35 in
• Material: Metal
• Temperature Rating: -40 to 59 deg C Ambient
• Warranty: 5 years
• Mfg Standards/Approvals: cULus File No. E342838|CE Certified
• Country of Origin: CH
